22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000601 - 230999999) (2003) CONTROL PANEL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

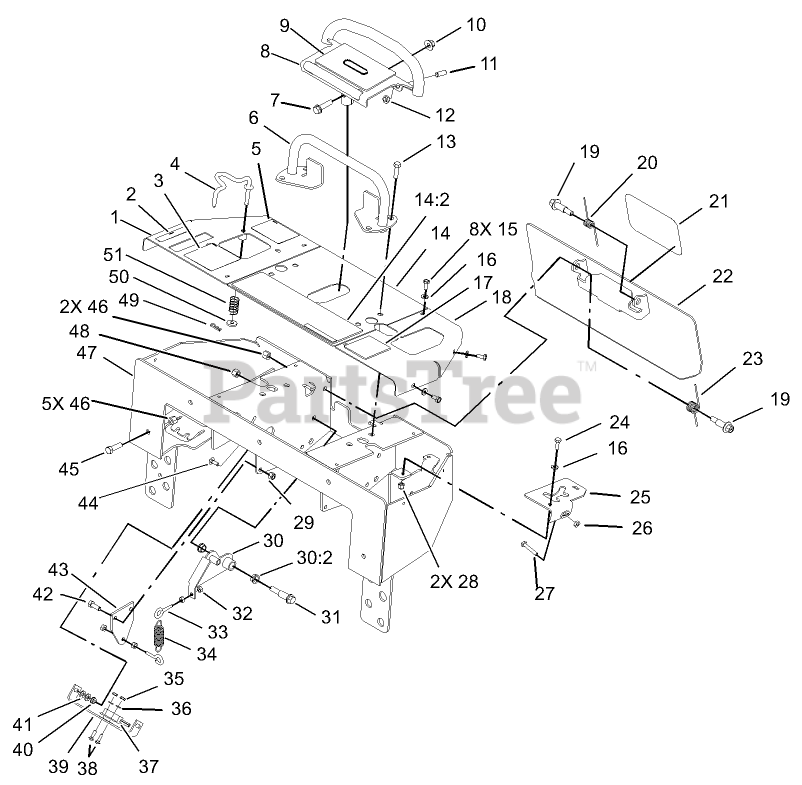

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-5824-01

RH PANEL ASM

$

$

Not available

2

Toro 104-2838

DECAL-BRAKE

$28.99

$

Usually ships in 3-6 days

0

3

Toro 104-2837

DECAL-LOADER

$38.99

$

Usually ships in 3-6 days

0

4

Toro 104-2833

ROD-INTERLOCK
(Superseded to 115-4580)

$18.99

$

Usually ships in 3-6 days

0

5

Toro 104-2844

DECAL-INTERLOCK

$55.99

$

Usually ships in 3-6 days

0

6

Toro 98-8400-03

REFERENCE BAR ASM

$

$

Not available

7

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

8

Toro 104-9970-03

CONTROL HANDLE ASM

$

$

Not available

9

Toro 100-6138

DECAL-TRACTION

$

$

Not available

10

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

11

Toro 3247-6

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

12

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

13

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

14

Toro 100-6144

CENTER PANEL ASM

$

$

Not available

14:2

Toro 100-6140

DECAL-DANGER

$27.99

$

Usually ships in 3-6 days

0

15

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

16

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

17

Toro 100-6136

DECAL-AUXILARY

$53.99

$

Usually ships in 3-6 days

0

18

Toro 98-8428-01

PANEL-LH

$112.99

$

In Stock, only 1 left!

0

19

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

20

Toro 98-8424

SPRING-TORSION, RH

$30.99

$

Usually ships in 3-6 days

0

21

Toro 105-1217

DECAL

$40.99

$

In Stock, Qty 8

0

22

Toro 98-8417-03

REVERSE PLATE ASM

$

$

Not available

23

Toro 98-8425

SPRING-TORSION, LH

$30.99

$

Usually ships in 3-6 days

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 100-6126-01

AUXILIARY STOP ASM

$

$

Not available

26

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

27

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

28

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 100-4203

NEUTRAL CENTERING LEVER ASM

$213.99

$

Usually ships in 3-6 days

0

30:2

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

31

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

32

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

33

Toro 71-2870

BOLT-EYE

$19.99

$

In Stock, only 2 left!

0

34

Toro 105-1210

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0

35

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

36

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

37

Toro 100-1270

SWITCH-PROXIMITY

$115.99

$

Usually ships in 3-6 days

0

38

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

39

Toro 100-1263

PLATE-SWITCH

$39.99

$

Usually ships in 3-6 days

0

40

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

41

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 100-1261-03

BRACKET-SPRING

$

$

Not available

44

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

45

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

46

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

47

Toro 95-3540-01

CONTROL PANEL ASM

$

$

Not available

48

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

49

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

50

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

51

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0
