22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000301 - 230000600) (2003) TWO SPOOL VALVE ASSEMBLY NO. 95-3536 Parts Diagram

Dingo Compact Utility Loader

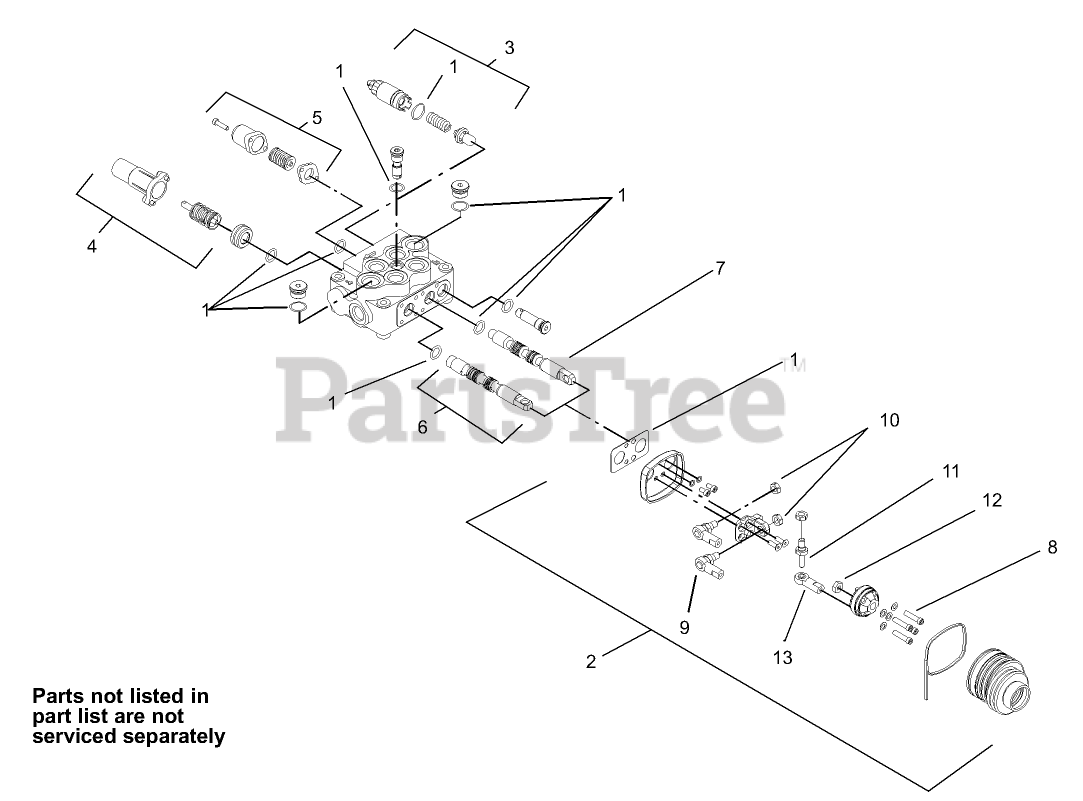

TWO SPOOL VALVE ASSEMBLY NO. 95-3536 Parts Diagram

  • Title

1

Toro 100-4249

SEAL KIT

$131.99

$

Usually ships in 3-6 days

0

2

Toro 100-7230

JOYSTICK KIT
(Superseded to 119-4622)

$835.99

$

Usually ships in 3-6 days

0

3

Toro 100-8805

VALVE-RELIEF

$524.99

$

Usually ships in 3-6 days

0

4

Toro 106-7569

Kit-Spring, Valve

$

$

Not available

5

Toro 106-7570

Kit-Spring

$

$

Not available

6

Toro 106-7571

Spool

$341.99

$

Usually ships in 3-6 days

0

7

Toro 106-7572

Spool

$337.99

$

Usually ships in 3-6 days

0

8

Toro 106-7573

Screw-Joystick

$9.49

$

Usually ships in 3-6 days

0

9

Toro 106-7574

Joint-Articulated

$

$

Not available

10

Toro 106-7575

Nut-Joystick

$

$

Not available

11

Toro 106-7576

Pin-Joystick

$

$

Not available

12

Toro 106-7577

NUT-GALVANISED

$

$

Not available

13

Toro 106-7578

End-Rod
(Superseded to 119-4626)

$162.99

$

In Stock, only 3 left!

0
