22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000301 - 230000600) (2003) GROUP 3-OIL PAN/LUBRICATION ASSEMBLY KOHLER CH20S-64656 Parts Diagram

Dingo Compact Utility Loader

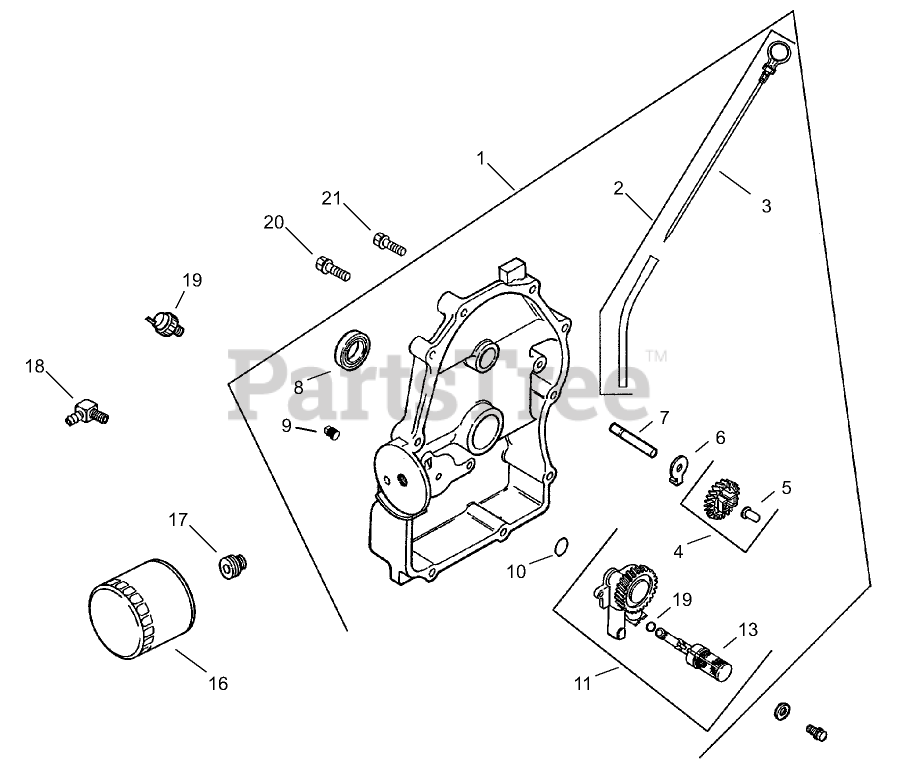

GROUP 3-OIL PAN/LUBRICATION ASSEMBLY KOHLER CH20S-64656 Parts Diagram

  • Title

1

Kohler 24 009 92-S

Plate, Closure ASM (Includes 2-13)
(Superseded to 24 009 216-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$684.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

Dipstick & Tube Kit (Includes 3)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, Qty 7

0

3

Kohler 24 038 10-S

Dipstick

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 6

0

4

Kohler 24 043 12-S

Kit, governor gear (Includes 5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

In Stock, Qty 12

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 9

0

6

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 20+

0

9

Kohler X-75-23-S

Plug
(Superseded to 25 139 60-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 1 left!

0

11

Kohler 24 393 10-S

Oil pump assembly (Includes 12,13)
(Superseded to 24 393 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 153 01-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 381 04-S

TUBE-PICK UP, OIL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

In Stock, only 1 left!

0

14

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

15

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

16

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, Qty 20+

0

17

Kohler 24 136 01-S

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

18

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, only 1 left!

0

19

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

In Stock, only 1 left!

0

20

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

21

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0
