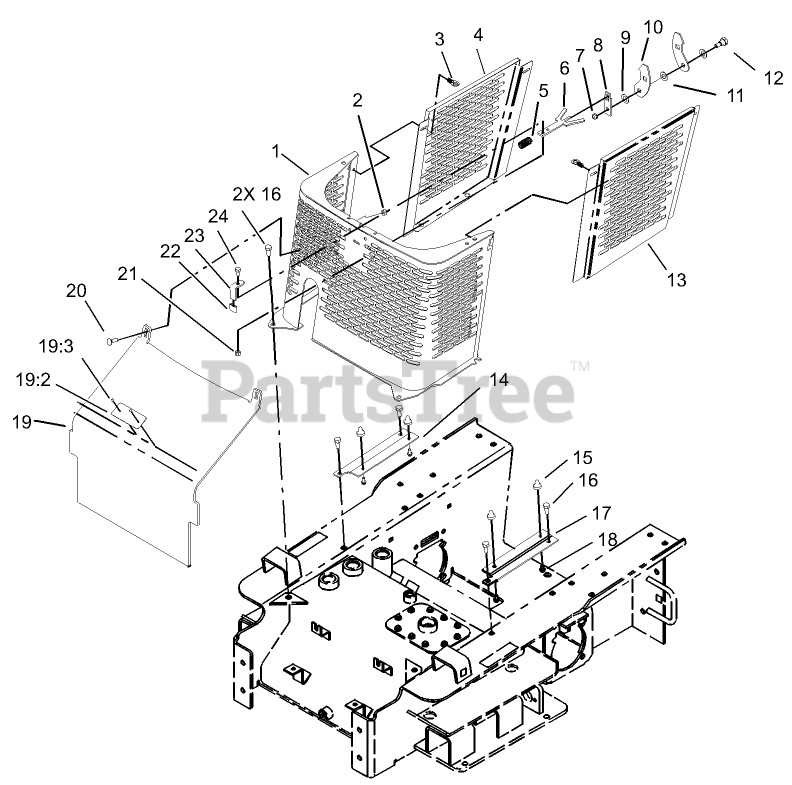

22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000301 - 230000600) (2003) GRILL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

GRILL ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1282-03

GRILL ASM

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 95-4013

LATCH ASM

$21.99

$

Usually ships in 3-6 days

0

4

Toro 105-0380-03

PANEL-SIDE, RH

$

$

Not available

5

Toro 100-6102

SPRING-COMPRESSION

$

$

Not available

6

Toro 100-4226

LEVER-LATCH

$

$

Not available

7

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

8

Toro 100-4225

SPACER-LATCH

$

$

Not available

9

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

10

Toro 100-4224

LATCH-HOOD

$

$

Not available

11

Toro 257-10

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

12

Toro 27-5240

BOLT-SHOULDER

$22.99

$

Usually ships in 3-6 days

0

13

Toro 105-0379-03

PANEL-SIDE, LH

$

$

Not available

14

Toro 100-1280-03

SUPPORT-SIDE PANEL, RH

$

$

Not available

15

Toro 95-3989

MOUNT-SIDEPANEL

$

$

Not available

16

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

17

Toro 100-1281-03

SUPPORT-SIDE PANEL, LH

$

$

Not available

18

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

19

Toro 105-0395

HEAT SHIELD ASM

$217.99

$

Usually ships in 3-6 days

0

19:2

Toro 80-8290

PLATE-SURFACE, HOT

$

$

Not available

19:3

Toro 3269-31

RIVET-POP

$3.49

$

In Stock, Qty 10

0

20

Toro 3230-28

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 100-1655

GRIP-HANDLE

$2.99

$

Usually ships in 3-6 days

0

23

Toro 100-4223

HANDLE-LATCH

$63.99

$

Usually ships in 3-6 days

0

24

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0
