22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000001 - 230000300) (2003) TRACK AND TRACTION ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

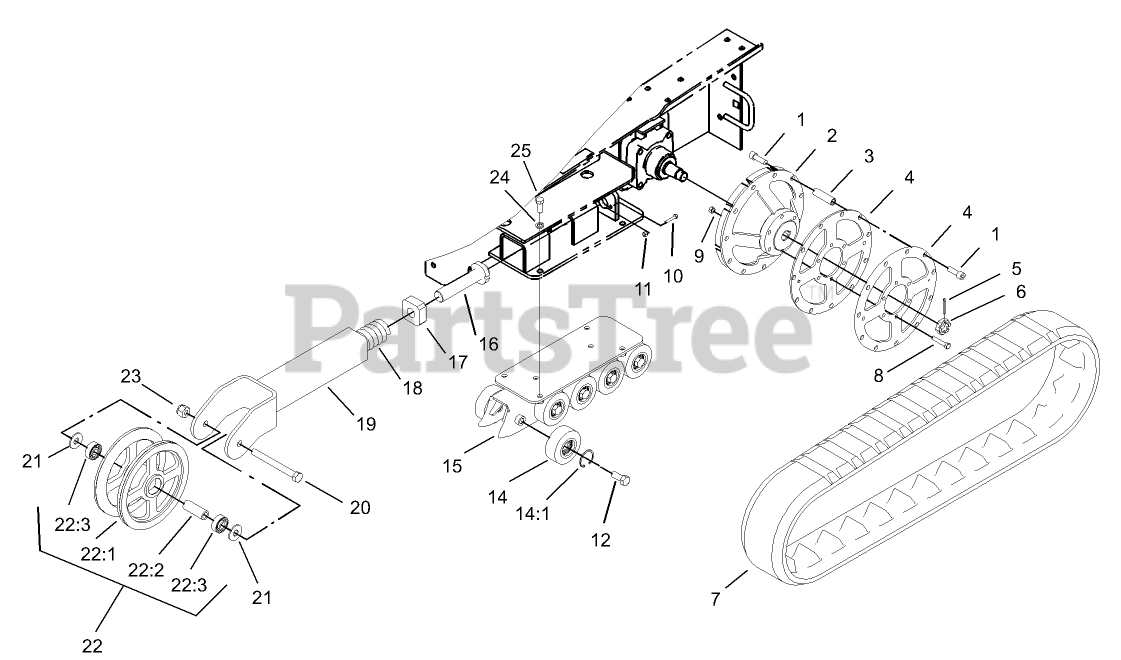

TRACK AND TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

2

Toro 106-7600-03

Drive Wheel ASM
(Superseded to 133-9417-03)

$742.99

$

In Stock, only 1 left!

0

3

Toro 100-1286

SPACER-WHEEL, DRIVE

$40.99

$

In Stock, Qty 6

0

4

Toro 99-6159-03

PLATE-WHEEL, DRIVE

$271.99

$

Usually ships in 3-6 days

0

5

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

6

Toro 99-3139

NUT

$17.99

$

In Stock, only 4 left!

0

7

Toro 98-9800

TRACK
(Superseded to 136-5847)

$1154.99

$

In Stock, only 1 left!

0

8

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

10

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 99-6154

BOGGY WHEEL ASM
(Superseded to 106-7620)

$100.99

$

In Stock, Qty 5

0

14:1

Toro 32120-62

RING-RETAINING

$4.99

$

In Stock, Qty 14

0

15

Toro 105-5803-03

TRACK GUIDE ASM

$

$

Not available

16

Toro 98-9846

BOLT-TENSIONER

$469.99

$

Usually ships in 3-6 days

0

17

Toro 95-3626

BLOCK-TENSIONER

$301.99

$

Usually ships in 3-6 days

0

18

Toro 95-3624

SPRING-COMPRESSION

$197.99

$

In Stock, only 1 left!

0

19

Toro 98-9801-03

TENSIONER ARM ASM
(Superseded to 108-5630)

$734.99

$

Usually ships in 3-6 days

0

20

Toro 327-17

SCREW-HH

$13.99

$

In Stock, Qty 8

0

21

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Toro 104-5745

TENSIONER WHEEL ASM

$771.99

$

Usually ships in 3-6 days

0

22:1

Toro 104-5747-03

WHEEL-TENSIONER

$656.99

$

Usually ships in 3-6 days

0

22:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$18.99

$

In Stock, only 2 left!

0

22:3

Toro 93-4237

BEARING
(Superseded to 120-5378)

$17.99

$

In Stock, Qty 20+

0

23

Toro 3296-24

NUT-HEX

$5.49

$

In Stock, Qty 20+

0

24

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

25

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0
