22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000001 - 230000300) (2003) STARTING SYSTEM (CH20S 64656 KOHLER) Parts Diagram

Dingo Compact Utility Loader

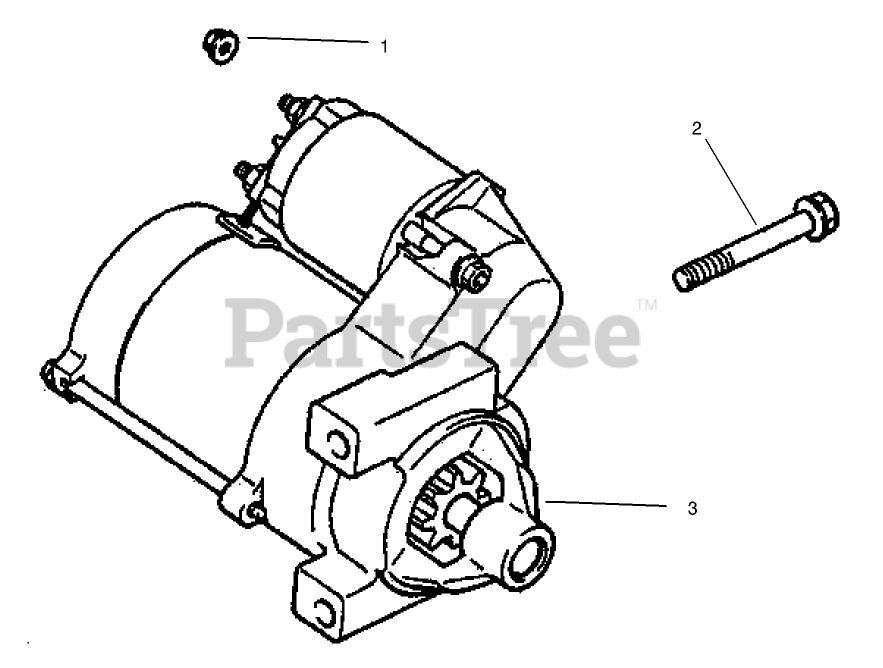

STARTING SYSTEM (CH20S 64656 KOHLER) Parts Diagram

  • Title

1

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

2

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

3

Toro 24 098 08-S

Starter-Solenoid Shift (Incl #4-18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

Kohler 25 755 33-S

Kit, pinion drive (Incl. Ring 24 141 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 25 755 33-S

Kit, pinion drive (Incl. Ring 24 141 01-S)

Note: Not illustrated

$

$

Not available

Kohler 25 221 01-S

BRUSH HOLDER KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$70.99

$

Usually ships in 2-5 days

0

Kohler 25 221 01-S

BRUSH HOLDER KIT

Note: Not illustrated

$70.99

$

Usually ships in 2-5 days

0

Kohler 25 435 04-S

Solenoid Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 25 435 04-S

Solenoid Kit

Note: Not illustrated

$

$

Not available
