22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000001 - 230000300) (2003) FUEL SYSTEM (CH20S 64656 KOHLER) Parts Diagram

Dingo Compact Utility Loader

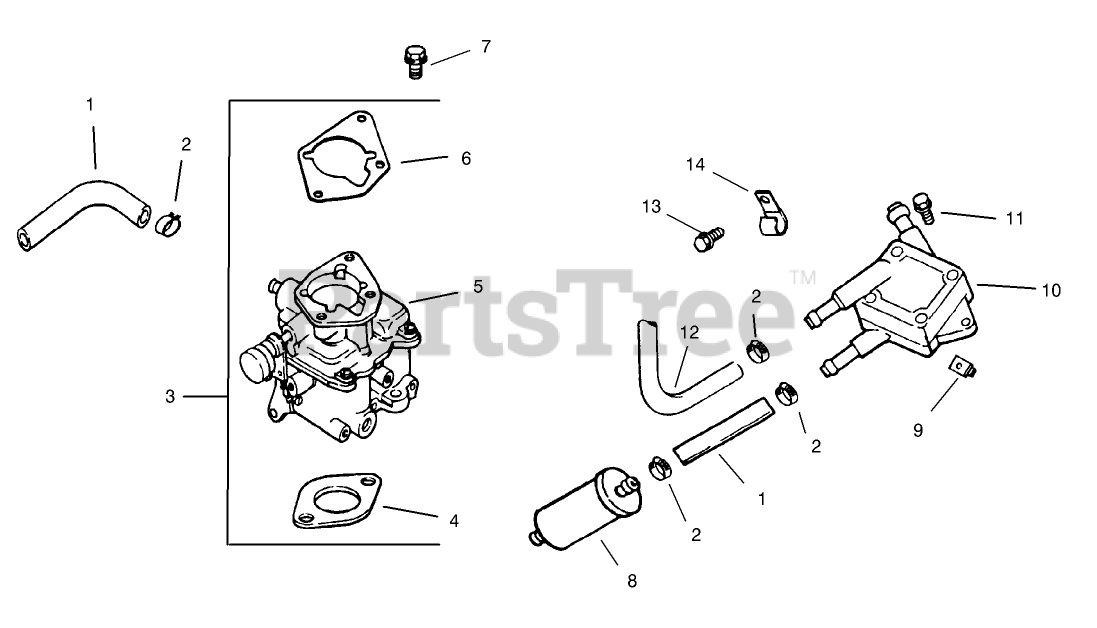

FUEL SYSTEM (CH20S 64656 KOHLER) Parts Diagram

  • Title

1

Kohler 25 353 32-S

Line-Fuel (9.5)
(Superseded to 25 111 81-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 3 left!

0

2

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 32-S

Kit, carburetor w/gasket (Incl. 4-6)
(Superseded to 24 853 309-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$289.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 19

0

5

Toro 24 053 32-S

Carburetor ASM(Includes 25 757 01-S,24 757 02-S,24 757 03-S, &24 757 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

6

Kohler 24 041 17-S

Gasket-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, Qty 9

0

7

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

10

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 16

0

11

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

Usually ships in 2-5 days

0

13

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

14

Kohler 47 154 01-S

CLIP-CABLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 4 left!

0

Kohler 24 757 01-S

Kit, solenoid (Includes solenoid 24 521 01-S, O-Ring 24 153 04-S, O-Ring 24 153 05-S, O-Ring 24 153 06-S, Solenoid screw 24 086 07-S, & Solenoid 24 435 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 01-S

Kit, solenoid (Includes solenoid 24 521 01-S, O-Ring 24 153 04-S, O-Ring 24 153 05-S, O-Ring 24 153 06-S, Solenoid screw 24 086 07-S, & Solenoid 24 435 01-S)

Note: Not illustrated

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Not illustrated

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 07-S

Kit, choke (Includes choke lever cap 24 173 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 07-S

Kit, choke (Includes choke lever cap 24 173 02-S)

Note: Not illustrated

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 03-S

Kit, carburetor repair (Includes inlet needle valve clip 24 154 01-S, inlet needle valve 24 462 01-S, carburetor body screw 24 086 09-S, carbureto body gasket 24 041 09-S, slow O-Ring 24 153 02-S, O-Ring 24 13 04-S, O-Ring 24 153 05-S, O-Ring 24 153

Note: Call PartsTree Customer Service for more information on Kohler Parts

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

Kit, carburetor repair (Includes inlet needle valve clip 24 154 01-S, inlet needle valve 24 462 01-S, carburetor body screw 24 086 09-S, carbureto body gasket 24 041 09-S, slow O-Ring 24 153 02-S, O-Ring 24 13 04-S, O-Ring 24 153 05-S, O-Ring 24 153

Note: Not illustrated

$112.99

$

Usually ships in 2-5 days

0
