22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 220000401 - 220999999) (2002) REAR ACCESS PANEL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

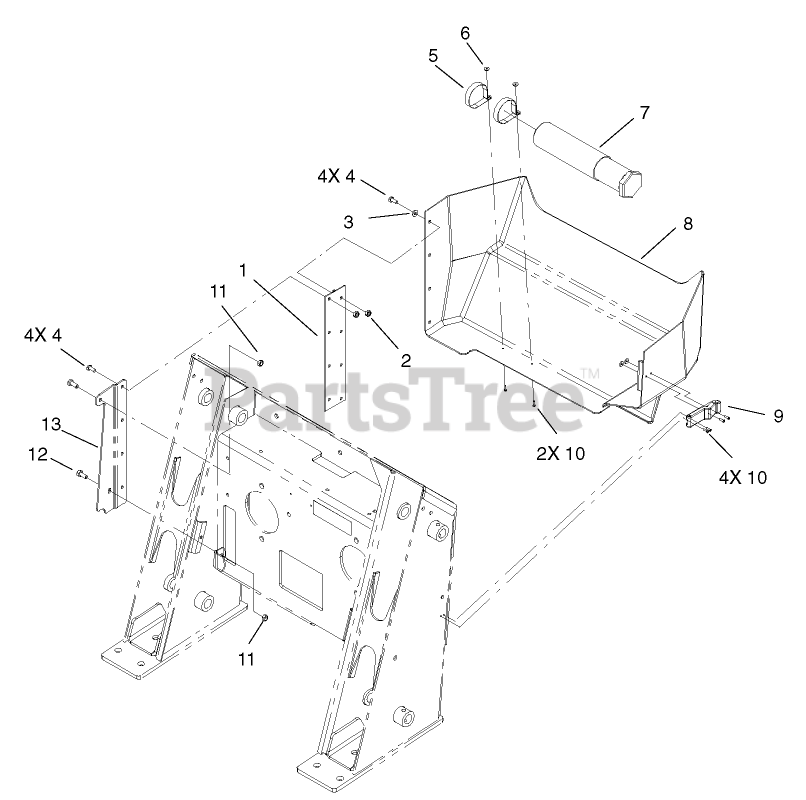

REAR ACCESS PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1290

HINGE-COVER

$

$

Not available

2

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

3

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

6

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

7

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

8

Toro 100-1288

COVER-BACK

$

$

Not available

9

Toro 80-6980

LATCH

$132.99

$

Usually ships in 3-6 days

0

9:1

Keeper-Latch

Note: Not serviced separately

$

$

Not available

10

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

11

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

13

Toro 100-1289-01

BRACKET-HINGE, COVER

$

$

Not available
