22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 220000401 - 220999999) (2002) LOADER TOWER AND DRIVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

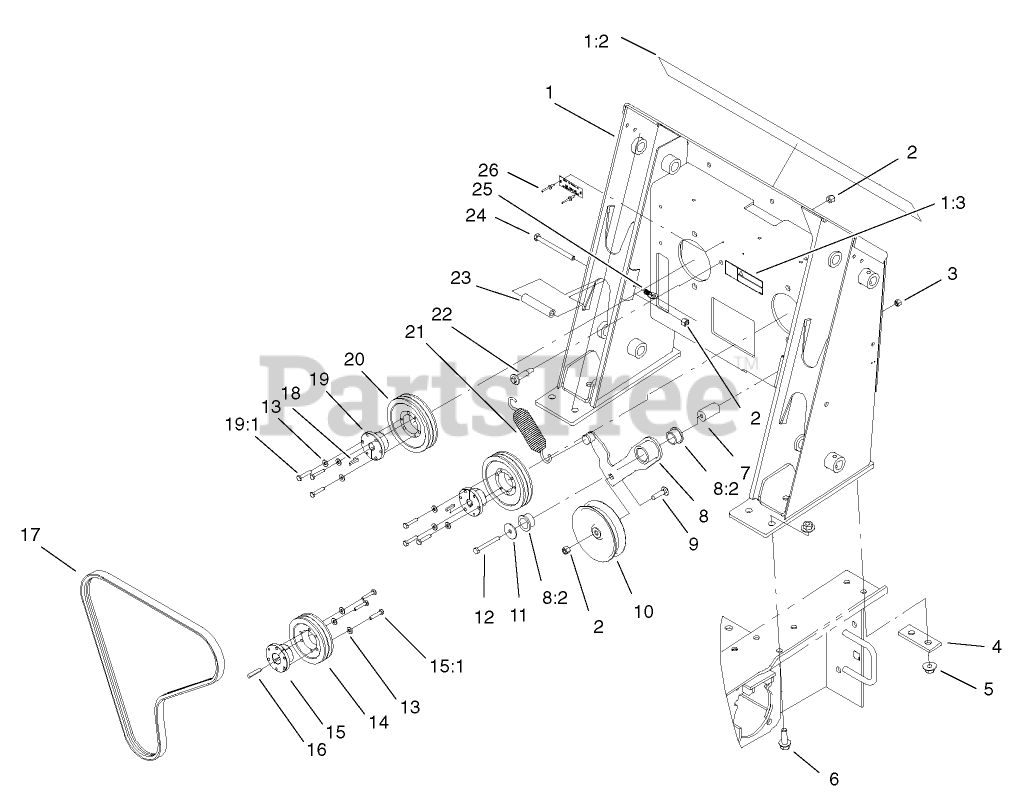

LOADER TOWER AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2843

LOADER TOWER ASM

$

$

Not available

1:2

Toro 104-2842

DECAL-PANEL

$110.99

$

Usually ships in 3-6 days

0

1:3

Toro 80-8040

DECAL-WARNING

$16.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 100-6123-01

PLATE-STIFFENER

$77.99

$

Usually ships in 3-6 days

0

5

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

6

Toro 100-6116

SCREW-HHF

$8.99

$

In Stock, only 1 left!

0

7

Toro 104-5739

SPACER-MOUNTING

$24.99

$

Usually ships in 3-6 days

0

8

Toro 99-6167

IDLER ARM ASM

$

$

Not available

8:2

Toro 256-132

BUSHING-FLANGE

$8.49

$

In Stock, Qty 5

0

9

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

10

Toro 95-3707

PULLEY-IDLER

$172.99

$

In Stock, only 1 left!

0

11

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 7

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 61-3330

PULLEY

$277.99

$

In Stock, only 1 left!

0

15

Toro 61-3340

BUSHING

$87.99

$

In Stock, only 1 left!

0

15:1

Toro 100-4208

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

16

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

17

Toro 95-3611

V-BELT

$138.99

$

In Stock, only 3 left!

0

18

Toro 80-6090

KEY-PUMP

$9.49

$

In Stock, only 1 left!

0

19

Toro 100-4206

BUSHING

$

$

Not available

19:1

Toro 100-4208

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

20

Toro 100-4207

SHEAVE

$453.99

$

In Stock, only 2 left!

0

21

Toro 105-0383

SPRING-EXTENSION

$95.99

$

In Stock, only 1 left!

0

22

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

23

Toro 100-1271

TUBE-SPACER

$24.99

$

Usually ships in 3-6 days

0

24

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 18

0

25

Toro 95-4013

LATCH ASM

$21.99

$

Usually ships in 3-6 days

0

26

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0
