22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 220000401 - 220999999) (2002) ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

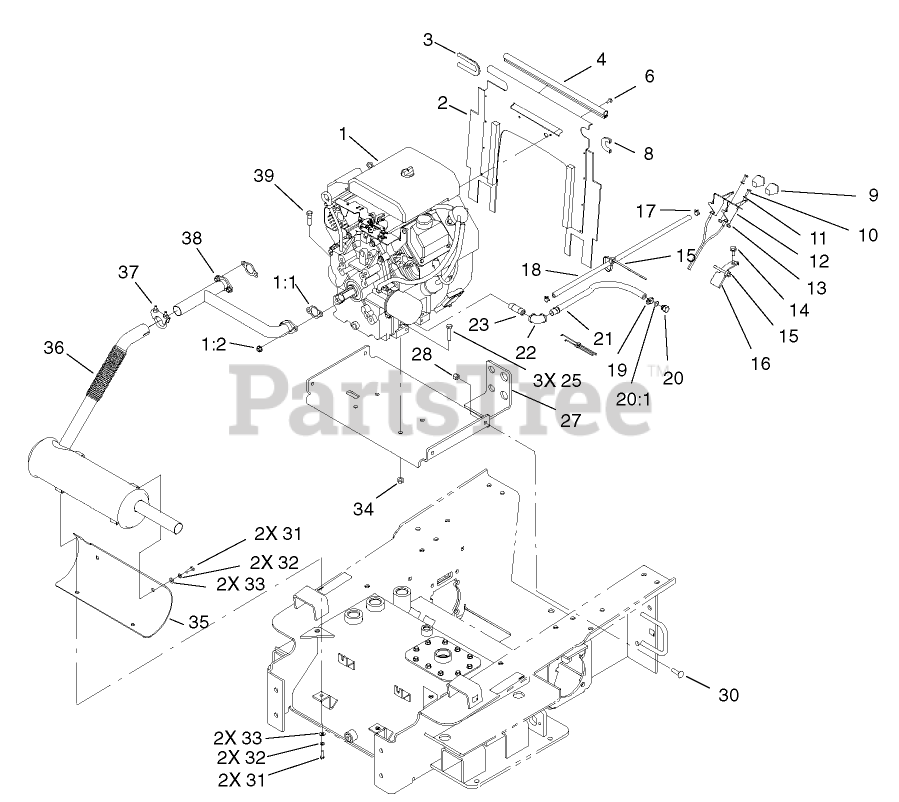

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-Kohler, Ch20s-64656

Note: Not serviced separately

$

$

Not available

1:1

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

1:2

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

2

Toro 105-5800

Engine Baffle ASM

$

$

Not available

3

Toro 105-0378

SEAL-STRIP, 6.5 INCH

$12.99

$

Usually ships in 3-6 days

0

4

Toro 105-5801

Strip-Seal, 16"

$

$

Not available

6

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

8

Toro 105-0377

SEAL-STRIP, 3 INCH

$10.99

$

Usually ships in 3-6 days

0

9

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

10

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

11

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

12

Toro 99-6173

CABLE-THROTTLE

$90.99

$

In Stock, only 1 left!

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 100-1299-03

GUIDE-CABLE

$41.99

$

In Stock, only 1 left!

0

17

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

18

Toro 105-0376

HOSE-FUEL
(Superseded to 109-0301)

$13.99

$

Usually ships in 3-6 days

0

19

Toro 2412-119

CLAMP-HOSE, WORM DRIVE

$2.49

$

Usually ships in 3-6 days

0

20

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

20:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

21

Toro 100-1256

OIL HOSE ASM

$96.99

$

Usually ships in 3-6 days

0

22

Toro 94-9650

ELBOW-90 DEG

$37.99

$

Usually ships in 3-6 days

0

23

Toro 289-42

NIPPLE

$18.99

$

Usually ships in 3-6 days

0

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 99-6175-03

ENGINE MOUNTING PLATE ASM

$

$

Not available

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

30

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

31

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

35

Toro 98-2762

SHIELD-HEAT, MUFFLER

$177.99

$

Usually ships in 3-6 days

0

36

Toro 105-0249

MUFFLER

$666.99

$

Usually ships in 3-6 days

0

37

Toro 2112-11

CLAMP-MUFFLER

$7.99

$

Usually ships in 3-6 days

0

38

Toro 98-2761

MANIFOLD-CROSSOVER

$

$

Not available

39

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
