22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 220000401 - 220999999) (2002) ELECTRICAL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

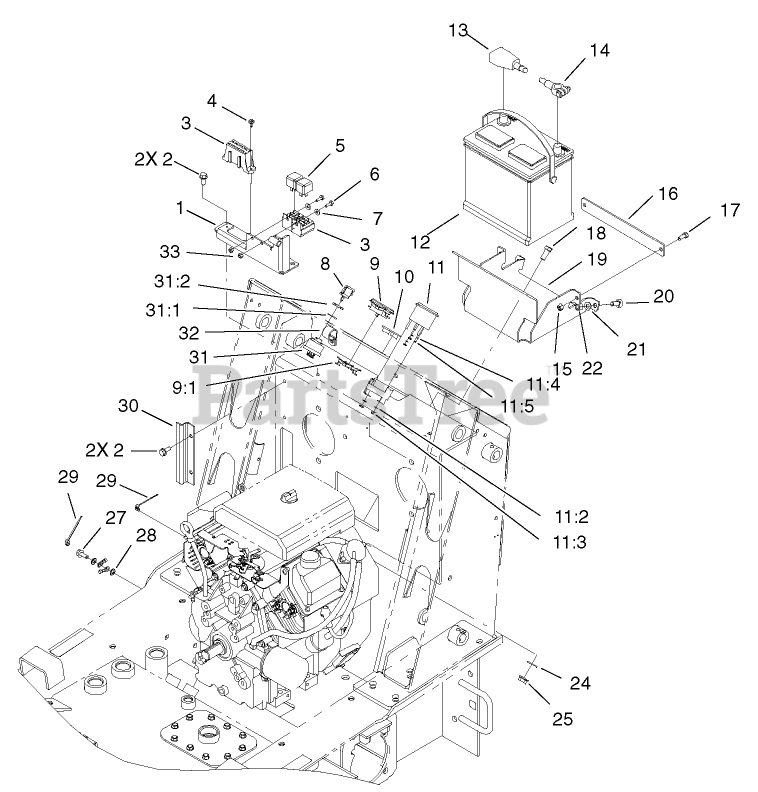

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1291-03

BRACKET-FUSE/RELAY

$

$

Not available

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 106-4152

Harness-Wire

$

$

Not available

3:1

Toro 114594

FUSE-10 AMP

Note: Not illustrated

$

$

Not available

3:2

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 9

0

3:3

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

3:4

Toro 109355

FUSE-BLADE, 15 AMP

Note: Not illustrated

$3.49

$

In Stock, only 1 left!

0

4

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

5

Toro 98-7249

RELAY

$22.99

$

In Stock, only 2 left!

0

6

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

7

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

8

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

9

Toro 104-7427

INDUCTIVE HOURMETER ASM

$305.99

$

Usually ships in 3-6 days

0

9:1

Toro 104-4234

CLIP-MOUNTING

$6.99

$

Usually ships in 3-6 days

0

10

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

11

Toro 66-2940

GAUGE-FUEL

$180.99

$

Usually ships in 3-6 days

0

11:2

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

11:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11:4

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

11:5

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 104-9979

BATTERY
(Superseded to 132-8621)

$391.99

$

Usually ships in 3-6 days

0

13

Toro 99-6185

CABLE-BATTERY, POSITIVE

$78.99

$

Usually ships in 3-6 days

0

14

Toro 99-6186

CABLE-BATTERY, NEGATIVE

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 105-0371-01

CLAMP-BATTERY
(Superseded to 105-0371-03)

$18.99

$

Usually ships in 3-6 days

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

19

Toro 105-0370-01

TRAY-MOUNTING, BATTERY

$

$

Not available

20

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

21

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

27

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

28

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

29

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

30

Toro 100-6117-01

SHIELD-WIRING

$23.99

$

Usually ships in 3-6 days

0

31

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 12

0

31:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

31:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

32

Toro 2412-41

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

33

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
