22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 220000401 - 220999999) (2002) AIR INTAKE/FILTRATION (CH20S 64656 KOHLER) Parts Diagram

Dingo Compact Utility Loader

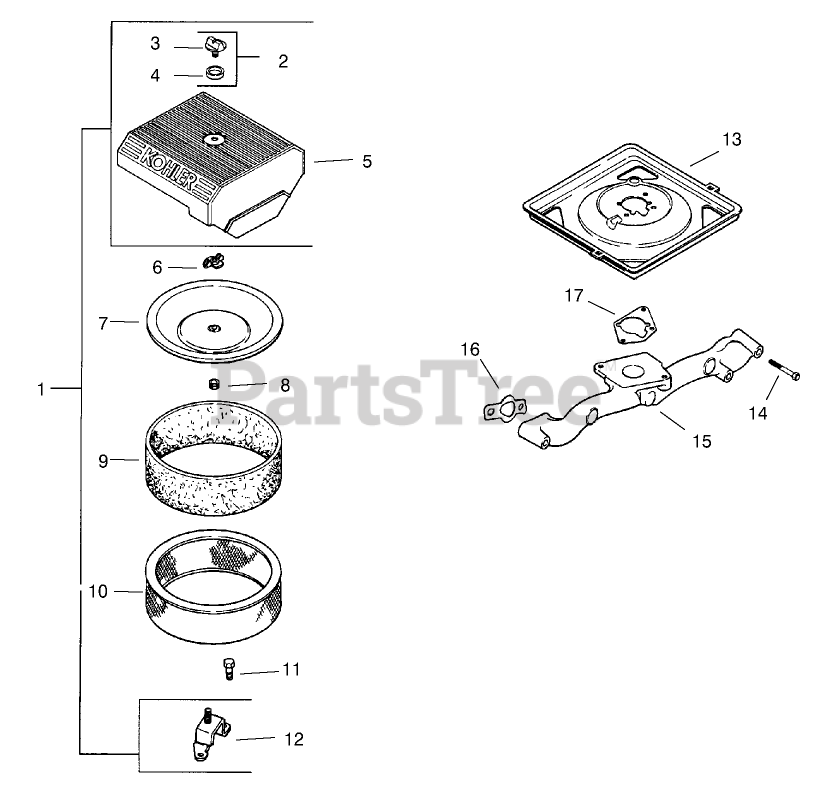

AIR INTAKE/FILTRATION (CH20S 64656 KOHLER) Parts Diagram

  • Title

1

Kohler 24 743 05-S

Kit, air cleaner (Includes 2-5, 12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, only 1 left!

0

2

Kohler 54 755 01-S

Kit, air cleaner knob (Includes 3,4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, only 2 left!

0

3

Kohler 25 341 03-S

Knob-Cover
(Superseded to 25 341 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 24 153 20-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

5

Kohler 24 096 67-S

Cover-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$47.99

$

In Stock, only 1 left!

0

6

Kohler 12 100 01-S

NUT-WING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

8

Kohler 24 032 03-S

SEAL-AIR CLEANER, INNER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 9

0

9

Kohler 24 083 02-S

Element-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, Qty 8

0

10

Kohler 24 083 03-S

ELEMENT-FILTER, AIR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

Usually ships in 2-5 days

0

11

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

12

Kohler 24 126 21-S

Bracket-Base, Air Cleaner
(Superseded to 24 126 206-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 6

0

13

Kohler 24 094 03-S

Base-Air Cleaner
(Superseded to 24 094 84-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

In Stock, only 1 left!

0

14

Kohler M-651055-S

Screw-HF
(Superseded to 25 086 84-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14-S

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0
