22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 210000501 - 210999999) (2001) HYDRAULIC COOLER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

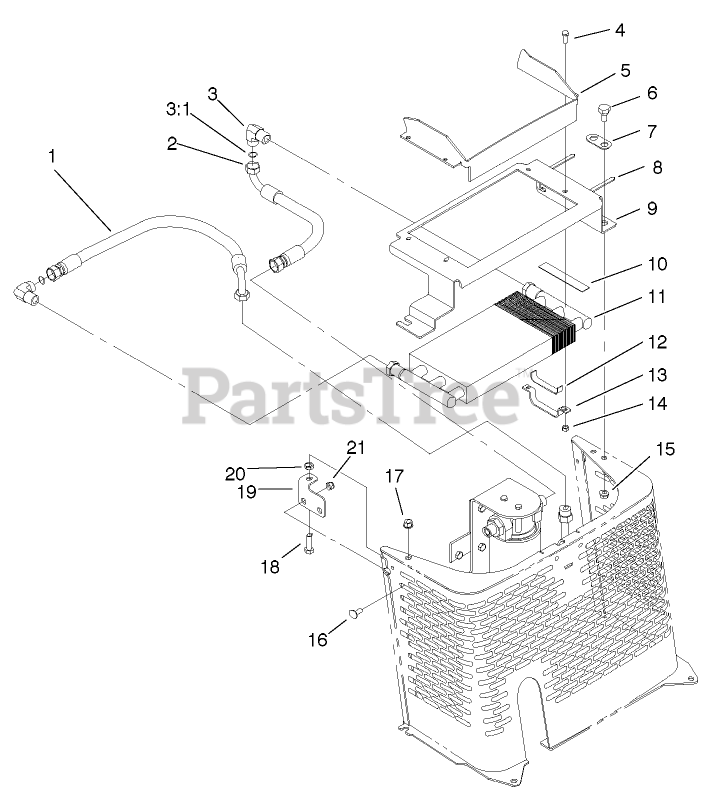

HYDRAULIC COOLER ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2848

HYD HOSE ASM

$

$

Not available

2

Toro 104-2806

HOSE-HYD

$226.99

$

Usually ships in 3-6 days

0

3

Toro 340-168

ADAPTER-ELBOW, 90 DEG

$50.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 104-2802-03

SHIELD-COOLER

$134.99

$

Usually ships in 3-6 days

0

6

Toro 46-3380

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

7

Toro 104-2804

WASHER-PIVOT

$

$

Not available

8

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

9

Toro 104-2801-03

BRACKET-COOLER

$

$

Not available

10

Toro 94-9566

PAD-FOOTREST

$6.49

$

Usually ships in 3-6 days

0

11

Toro 24-0760

COOLER ASM

$

$

Not available

12

Toro 104-2816

PAD-SUPPORT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 104-2803

SUPPORT-COOLER

$53.99

$

Usually ships in 3-6 days

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

17

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 104-2805-03

BRACKET-HOLDDOWN

$

$

Not available

20

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
