22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210000500) (2001) TRACK AND TRACTION ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

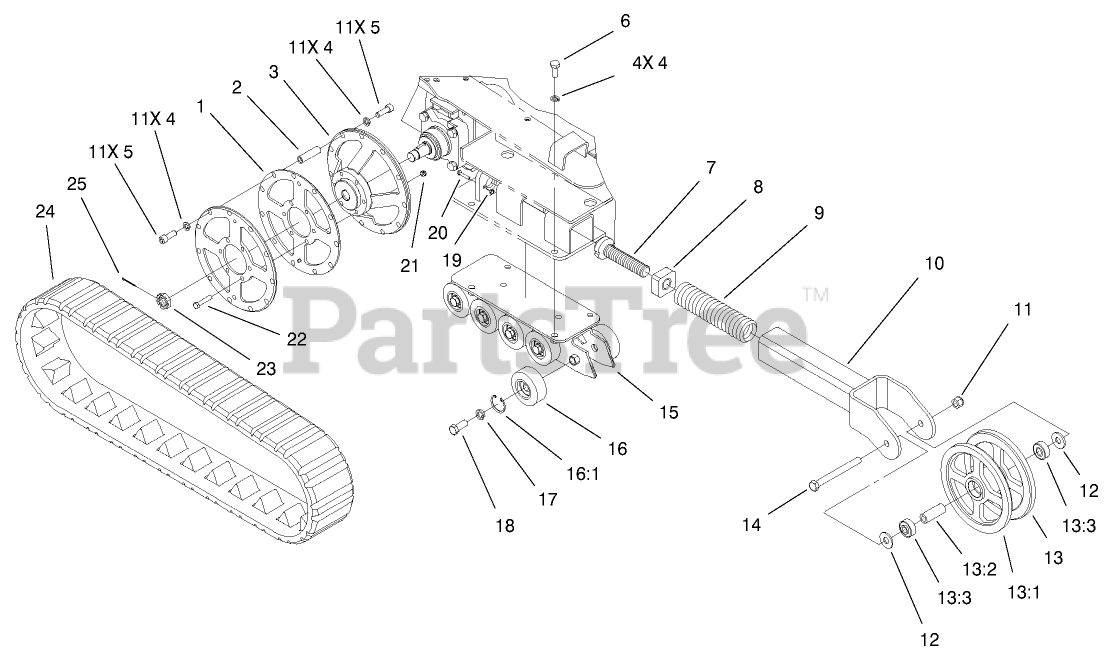

TRACK AND TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 99-6159-03

PLATE-WHEEL, DRIVE

$255.99

$

Usually ships in 3-6 days

0

2

Toro 100-1286

SPACER-WHEEL, DRIVE

$38.99

$

In Stock, Qty 8

0

3

Toro 99-6180-03

DRIVE WHEEL ASM
(Superseded to 133-9417-03)

$700.99

$

In Stock, only 1 left!

0

4

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

5

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

6

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

7

Toro 98-9846

BOLT-TENSIONER

$442.99

$

Usually ships in 3-6 days

0

8

Toro 95-3626

BLOCK-TENSIONER

$284.99

$

Usually ships in 3-6 days

0

9

Toro 95-3624

SPRING-COMPRESSION

$186.99

$

In Stock, only 1 left!

0

10

Toro 98-9801-03

TENSIONER ARM ASM
(Superseded to 108-5630)

$692.99

$

Usually ships in 3-6 days

0

11

Toro 3296-24

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

12

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 100-6104

TENSIONER WHEEL ASM
(Superseded to 104-5745)

$727.99

$

Usually ships in 3-6 days

0

13:1

Toro 99-6184-03

TENSIONER WHEEL ASM
(Superseded to 104-5747-03)

$619.99

$

Usually ships in 3-6 days

0

13:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$17.99

$

In Stock, only 2 left!

0

13:3

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, Qty 15

0

14

Toro 327-17

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

15

Toro 99-6155-03

Track Guide ASM
(Superseded to 105-5803-03)

$

$

Not available

16

Toro 99-6154

BOGGY WHEEL ASM
(Superseded to 106-7620)

$95.99

$

In Stock, Qty 5

0

16:1

Toro 32120-62

RING-RETAINING

$4.99

$

In Stock, Qty 7

0

17

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

21

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

22

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

$16.99

$

In Stock, only 2 left!

0

24

Toro 98-9800

TRACK
(Superseded to 136-5847)

$1088.99

$

In Stock, only 1 left!

0

25

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0
