22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210000500) (2001) FUEL AND HYDRAULIC TANK ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

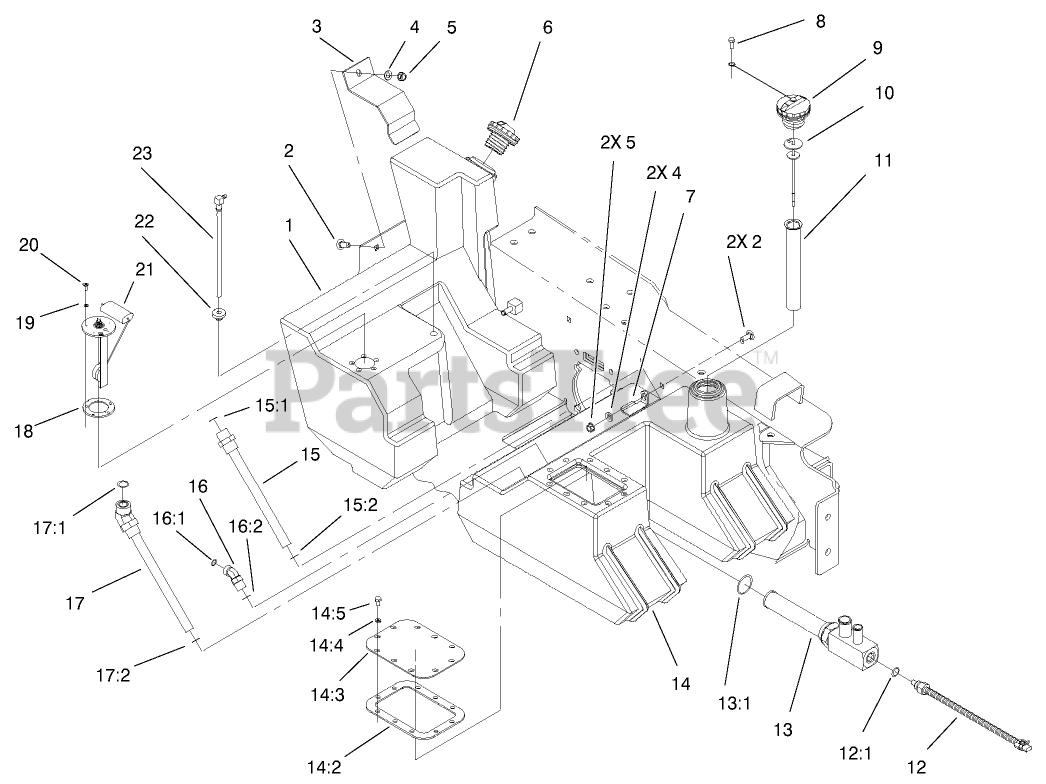

FUEL AND HYDRAULIC TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 95-3619

TANK-FUEL
(Superseded to 115-0799)

$446.99

$

Usually ships in 3-6 days

0

2

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

3

Toro 100-1257-03

CLAMP-TANK, FUEL

$

$

Not available

4

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$32.99

$

In Stock, Qty 5

0

7

Toro 98-2768-03

CLAMP-TANK, HYDRAULIC OIL

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 93-7160

CAP-OIL, HYD

$61.99

$

Usually ships in 3-6 days

0

10

Toro 95-3720

DIPSTICK ASM

$112.99

$

Usually ships in 3-6 days

0

11

Toro 29-0590

SCREEN-FILLER

$195.99

$

Usually ships in 3-6 days

0

12

Toro 98-2765

SENSOR-TEMPERATURE

$159.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

13

Toro 98-2766

OUTLET FITTING ASM

$

$

Not available

13:1

Toro 237-101

O-RING

$3.49

$

In Stock, only 1 left!

0

14

Toro 100-6100

HYDRAULIC TANK ASM

$

$

Not available

14:2

Toro 100-1253

GASKET-COVER, ACCESS

$

$

Not available

14:3

Toro 100-1254

COVER-ACCESS

$

$

Not available

14:4

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14:5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

15

Toro 98-2757

RETURN FITTING ASM

$

$

Not available

15:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

15:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

16

Toro 340-101

FITTING-HYD, 45 DEG

$37.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

16:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

17

Toro 99-6178

RETURN FITTING ASM

$

$

Not available

17:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

17:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

18

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 1 left!

0

19

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

20

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 100-1298

SENDER-FUEL

$177.99

$

Usually ships in 3-6 days

0

22

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

23

Toro 98-0185

PIPE-STAND

$40.99

$

Usually ships in 3-6 days

0
