22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210000500) (2001) ENGINE CONTROLS (CH20S 64637 KOHLER) Parts Diagram

Dingo Compact Utility Loader

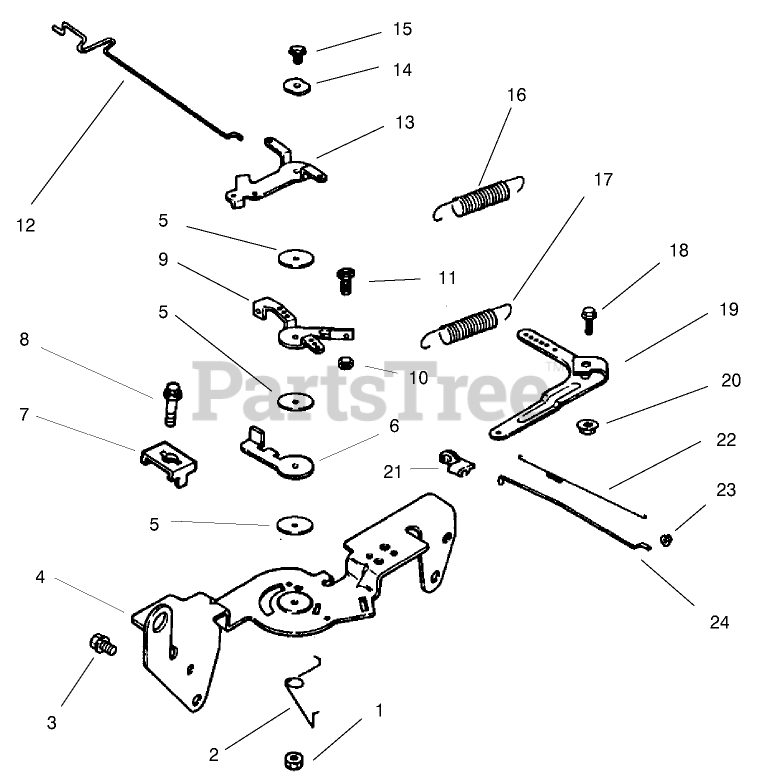

ENGINE CONTROLS (CH20S 64637 KOHLER) Parts Diagram

  • Title

1

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

2

Kohler 24 089 03-S

SPRING-RETURN, CHOKE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 12

0

3

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

4

Kohler 24 126 56-S

Bracket-Control
(Superseded to 24 126 263-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, only 1 left!

0

5

Kohler 24 468 01-S

WASHER-FLAT (5.5MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 090 07-S

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 1 left!

0

7

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

8

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 24 090 03-S

Lever-Control, Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, only 1 left!

0

10

Kohler M-446030-S

NUT (M4X0.7)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

11

Kohler M-401030-S

Screw (M4x0.7x30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 9

0

12

Kohler 24 079 02-S

Linkage-Choke
(Superseded to 24 079 66-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

13

Kohler 24 090 05-S

LEVER-CHOKE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 2 left!

0

14

Kohler 41 468 03-S

WASHER-SPRING (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

15

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

16

Kohler 24 089 38-S

Spring, throttle limiter
(Superseded to 24 089 51-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 1 left!

0

17

Kohler 24 089 15-S

Spring-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, only 1 left!

0

18

Kohler SM-642025-S

Screw-HF
(Superseded to M-642025-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

19

Kohler 24 090 14-S

Lever-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

21

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

0

22

Kohler 24 089 01-S

SPRING-LINKAGE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 9

0

23

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 18

0

24

Kohler 24 079 01-S

Linkage-Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 7
