22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210000500) (2001) CONTROL PANEL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

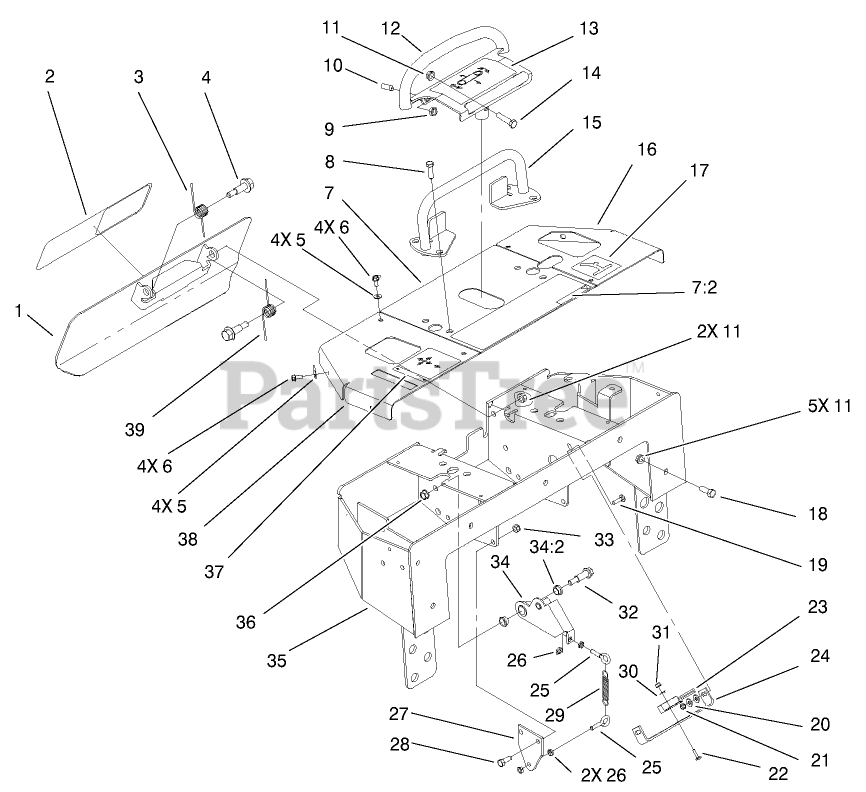

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 98-8417-03

REVERSE PLATE ASM

$

$

Not available

2

Toro 100-6134

DECAL-DINGO

$

$

Not available

3

Toro 98-8425

SPRING-TORSION, LH

$30.99

$

Usually ships in 3-6 days

0

4

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

5

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

6

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

7

Toro 100-6144

CENTER PANEL ASM

$

$

Not available

7:2

Toro 100-6140

DECAL-DANGER

$27.99

$

Usually ships in 3-6 days

0

8

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

9

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

10

Toro 3247-6

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

12

Toro 98-8420-03

CONTROL HANDLE ASM
(Superseded to 104-9970-03)

$

$

Not available

13

Toro 100-6138

DECAL-TRACTION

$

$

Not available

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 98-8400-03

REFERENCE BAR ASM

$

$

Not available

16

Toro 98-8428-01

PANEL-LH

$112.99

$

In Stock, only 1 left!

0

17

Toro 100-6136

DECAL-AUXILARY

$53.99

$

Usually ships in 3-6 days

0

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

22

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

23

Toro 100-1270

SWITCH-PROXIMITY

$115.99

$

Usually ships in 3-6 days

0

24

Toro 100-1263

PLATE-SWITCH

$39.99

$

Usually ships in 3-6 days

0

25

Toro 71-2870

BOLT-EYE

$19.99

$

In Stock, only 2 left!

0

26

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

27

Toro 100-1261-03

BRACKET-SPRING

$

$

Not available

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 82-4160

SPRING-DETENT
(Superseded to 105-1210)

$21.99

$

Usually ships in 3-6 days

0

30

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

32

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 100-4203

NEUTRAL CENTERING LEVER ASM

$213.99

$

Usually ships in 3-6 days

0

34:2

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

35

Toro 95-3540-01

CONTROL PANEL ASM

$

$

Not available

36

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

37

Toro 100-6137

DECAL-LOADER

$

$

Not available

38

Toro 98-8427-01

PANEL-RH

$

$

Not available

39

Toro 98-8424

SPRING-TORSION, RH

$30.99

$

Usually ships in 3-6 days

0
