22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000301 - 200999999) (2000) HOOD ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

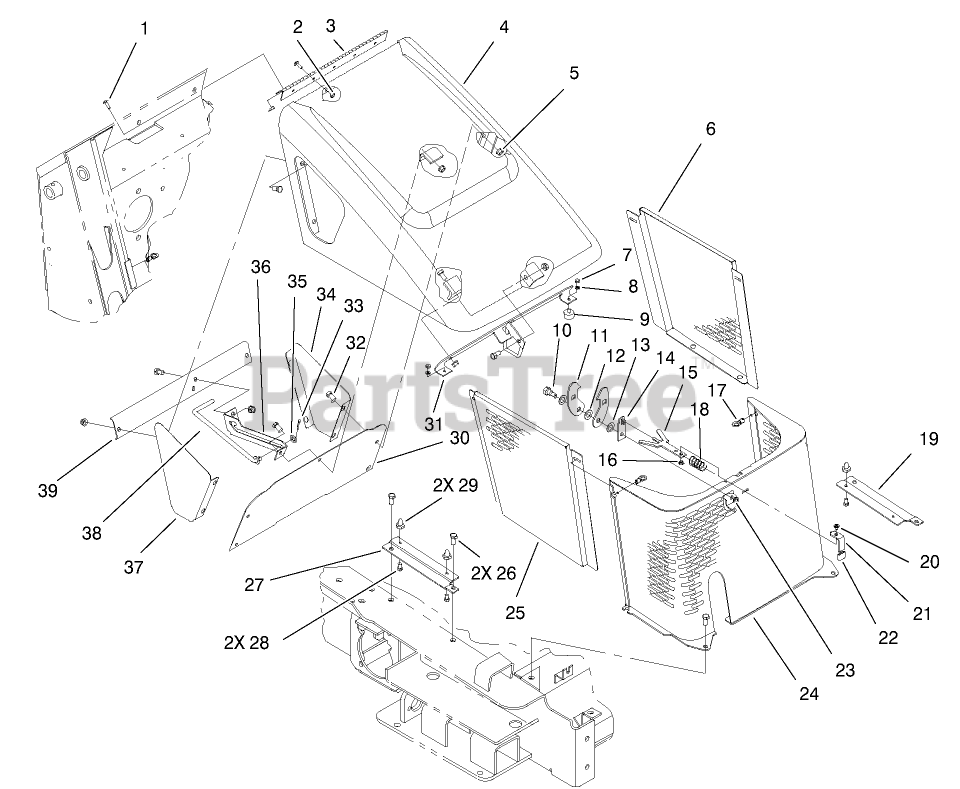

HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

3

Toro 100-1284

HINGE-HOOD

$80.99

$

In Stock, only 1 left!

0

4

Toro 100-4222

ENGINE HOOD ASM

$

$

Not available

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 100-4210-03

PANEL-SIDE, LH
(Superseded to 105-0379-03)

$

$

Not available

7

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 240-14

BUMPER-RUBBER

$14.99

$

Usually ships in 3-6 days

0

10

Toro 27-5240

BOLT-SHOULDER

$23.99

$

Usually ships in 3-6 days

0

11

Toro 100-4224

LATCH-HOOD

$

$

Not available

12

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

13

Toro 257-10

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

14

Toro 100-4225

SPACER-LATCH

$

$

Not available

15

Toro 100-4226

LEVER-LATCH

$

$

Not available

16

Toro 100-6121

SCREW-PANHEAD

$

$

Not available

17

Toro 95-4013

LATCH ASM

$21.99

$

Usually ships in 3-6 days

0

18

Toro 100-6102

SPRING-COMPRESSION

$

$

Not available

19

Toro 100-1281-03

SUPPORT-SIDE PANEL, LH

$

$

Not available

20

Toro 100-6122

BASE-ROUND, CAPPED

$

$

Not available

21

Toro 100-4223

HANDLE-LATCH

$

$

Not available

22

Toro 100-1655

GRIP-HANDLE

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

24

Toro 100-1282-03

GRILL ASM

$

$

Not available

25

Toro 100-4211-03

PANEL-SIDE, RH
(Superseded to 105-0380-03)

$

$

Not available

26

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 100-1280-03

SUPPORT-SIDE PANEL, RH

$

$

Not available

28

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

29

Toro 95-3989

MOUNT-SIDEPANEL

$

$

Not available

30

Toro 100-4213-03

BULKHEAD-HOOD

$

$

Not available

31

Toro 100-1297-03

ROD LATCH ASM

$

$

Not available

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

33

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

34

Toro 100-4214-03

SCREEN-LH

$

$

Not available

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

36

Toro 100-1292-03

BRACKET-ROD/HOOD

$

$

Not available

37

Toro 100-4215-03

SCREEN-RH

$

$

Not available

38

Toro 100-4229

ROD-SUPPORT, HOOD

$

$

Not available

39

Toro 100-4212-03

SUPPORT-BRACKET, ROD/HOOD

$

$

Not available
