22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200000150) (2000) MAIN CHASSIS ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

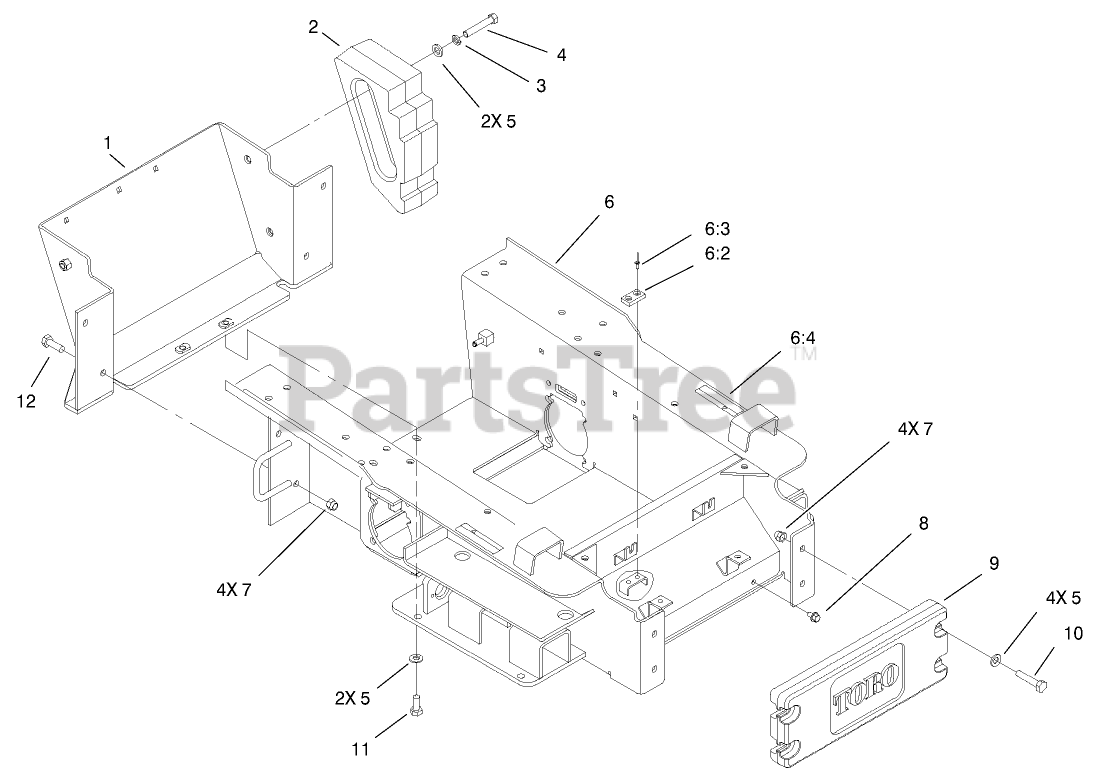

MAIN CHASSIS ASSEMBLY Parts Diagram

  • Title

1

Toro 98-0094-01

REAR FRAME COVER ASM

$

$

Not available

2

Toro 99-6165-01

COUNTERWEIGHT-REAR

$463.99

$

Usually ships in 3-6 days

0

3

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

4

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

5

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 100-6142

MAIN CHASSIS ASM

$4768.99

$

Usually ships in 3-6 days

0

6:2

Toro 100-4248

PAD-SUPPORT

$

$

Not available

6:3

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

6:4

Toro 100-6141

DECAL-PINCH

$40.99

$

Usually ships in 3-6 days

0

7

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

9

Toro 99-6166-01

COUNTERWEIGHT-FRONT

$777.99

$

Usually ships in 3-6 days

0

10

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

11

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

12

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0
