22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200000150) (2000) ENGINE AND MOUNTING ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

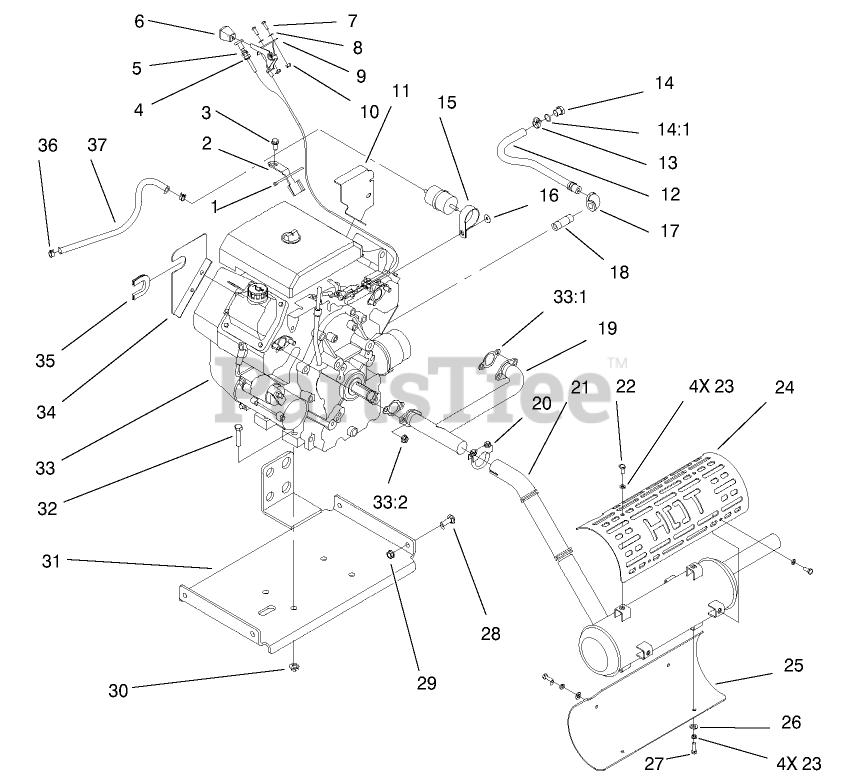

ENGINE AND MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

2

Toro 100-1299-03

GUIDE-CABLE

$41.99

$

In Stock, only 1 left!

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

5

Toro 99-6174

CABLE-CHOKE

$94.99

$

Usually ships in 3-6 days

0

6

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

7

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

8

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Toro 99-6173

CABLE-THROTTLE

$90.99

$

In Stock, only 1 left!

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 100-4227-03

BAFFLE-ENGINE, LH

$

$

Not available

12

Toro 100-1256

OIL HOSE ASM

$96.99

$

Usually ships in 3-6 days

0

13

Toro 2412-119

CLAMP-HOSE, WORM DRIVE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

14:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

15

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

16

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

17

Toro 94-9650

ELBOW-90 DEG

$37.99

$

Usually ships in 3-6 days

0

18

Toro 289-42

NIPPLE

$18.99

$

Usually ships in 3-6 days

0

19

Toro 98-2761

MANIFOLD-CROSSOVER

$

$

Not available

20

Toro 2112-11

CLAMP-MUFFLER

$7.99

$

In Stock, only 2 left!

0

21

Toro 98-2759

MUFFLER

$903.99

$

Usually ships in 3-6 days

0

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-2760-03

SHIELD-MUFFLER

$

$

Not available

25

Toro 98-2762

SHIELD-HEAT, MUFFLER

$177.99

$

Usually ships in 3-6 days

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

30

Toro 100-1252

NUT-HEX FLANGE

$

$

Not available

31

Toro 99-6175-03

ENGINE MOUNTING PLATE ASM

$

$

Not available

32

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 98-2750

ENGINE-20HP, KOHLER CH20S-64637

$8694.99

$

Usually ships in 3-6 days

0

33:1

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

33:2

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

34

Toro 100-4228-03

BAFFLE-ENGINE, RH

$

$

Not available

35

Toro 100-6103

SEAL-STRIP

$

$

Not available

36

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

37

Toro 100-1255

HOSE-FUEL
(Superseded to 109-0297)

$7.99

$

In Stock, only 1 left!

0
