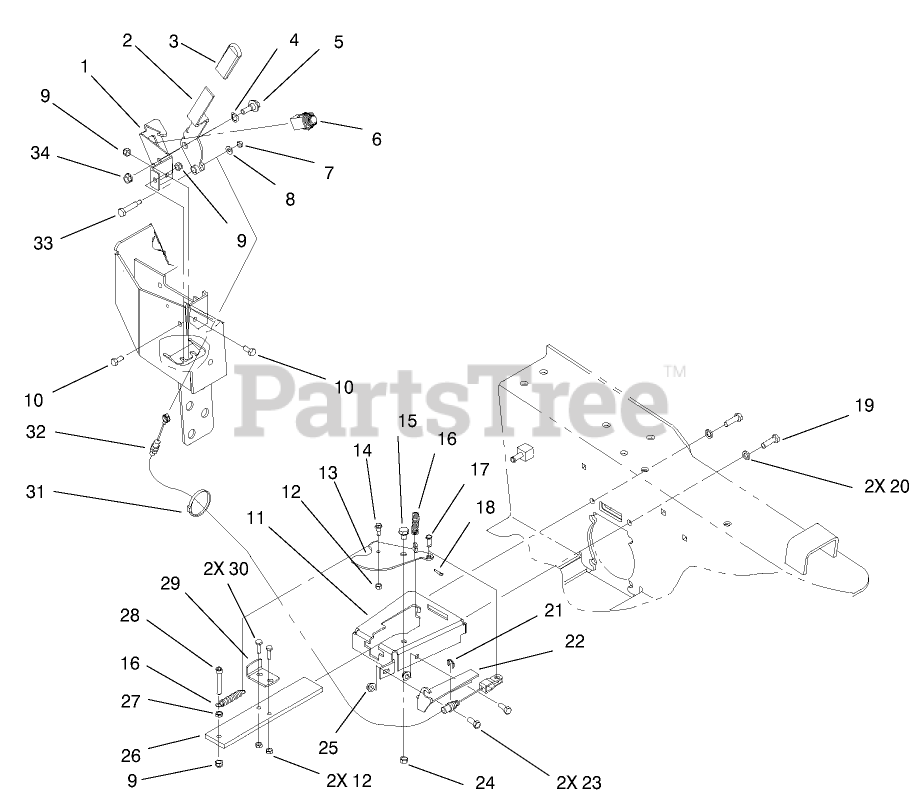

22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200000150) (2000) BRAKE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 99-6153-03

BRACKET-SWITCH

$

$

Not available

2

Toro 99-6151-03

BRAKE LEVER ASM

$

$

Not available

3

Toro 62-9130

GRIP-HANDLE

$7.99

$

Usually ships in 3-6 days

0

4

Toro 3290-221

WASHER-SPRING

$4.49

$

In Stock, Qty 6

0

5

Toro 93-2364

BOLT-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

6

Toro 100-1268

SWITCH-PLUNGER

$60.99

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 100-4200-03

BRAKE HOUSING ASM

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 98-8443

LEVER-BRAKE

$

$

Not available

14

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 17

0

15

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 13

0

16

Toro 87-4020

SPRING-EXTENSION

$24.99

$

Usually ships in 3-6 days

0

17

Toro 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 10

0

18

Toro 3272-9

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

19

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

21

Toro 32151-43

RING-CLIP

$9.99

$

Usually ships in 3-6 days

0

22

Toro 98-8446-03

BRACKET-CABLE, BRAKE

$

$

Not available

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 98-8444-03

PLATE-BRAKE
(Superseded to 106-7550-03)

$

$

Not available

27

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

28

Toro 3274-86

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

29

Toro 98-8448

STOP-BRAKE

$

$

Not available

30

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

32

Toro 100-1283

CABLE-BRAKE

$105.99

$

Usually ships in 3-6 days

0

33

Toro 611792

BOLT-SHOULDER

$28.99

$

Usually ships in 3-6 days

0

34

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0
