22305 TE (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) WHEEL AND MOTOR ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

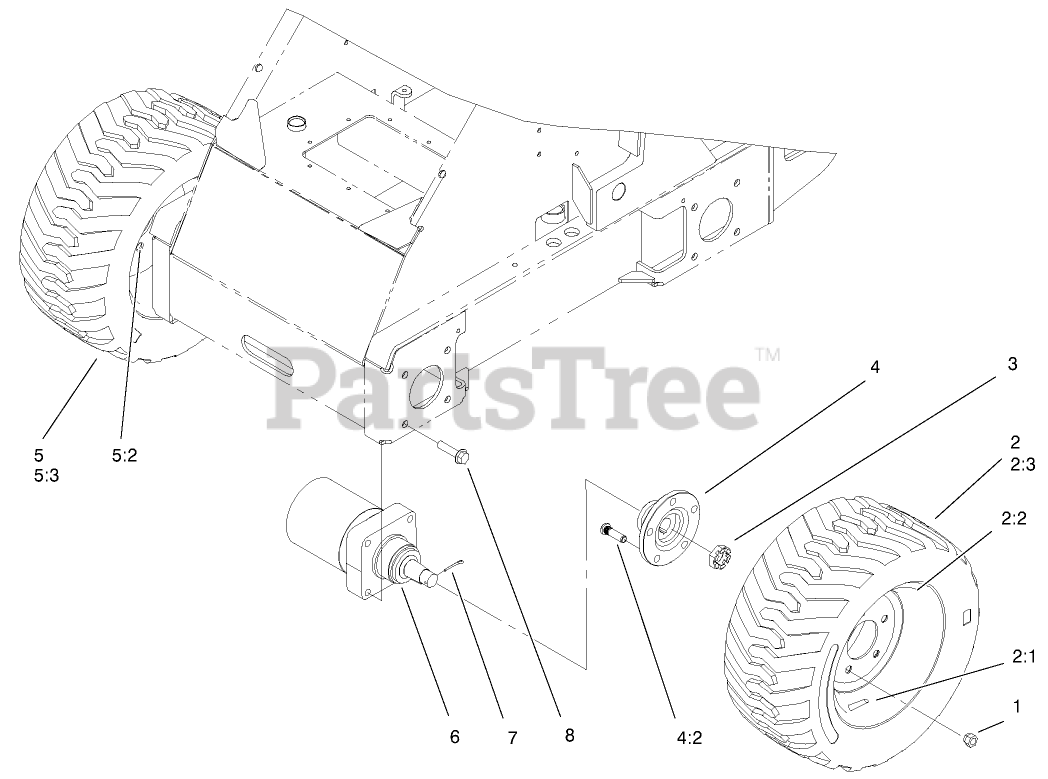

WHEEL AND MOTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

2

Toro 98-2747

LH WHEEL AND TIRE ASM

$

$

Not available

2:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

2:2

Toro 98-2748

WHEEL

$

$

Not available

2:3

Toro 98-2749

TIRE

$347.99

$

In Stock, only 4 left!

0

3

Toro 99-3139

NUT

$16.99

$

In Stock, only 2 left!

0

4

Toro 99-3064

HUB ASM

$239.99

$

In Stock, only 1 left!

0

4:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

5

Toro 99-1447

RH WHEEL AND TIRE ASM

$

$

Not available

5:2

Toro 98-2748

WHEEL

$

$

Not available

5:3

Toro 98-2749

TIRE

$347.99

$

In Stock, only 4 left!

0

5:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

Note: Not illustrated

$6.99

$

In Stock, Qty 16

0

6

Toro 99-3052

HYD MOTOR ASM

$2640.99

$

Usually ships in 3-6 days

0

6:1

Toro 94-8178

SEAL KIT
(Superseded to 100-6131)

Note: Not illustrated

$109.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-3090

SHAFT-COUPLING

Note: Not illustrated

$575.99

$

Usually ships in 3-6 days

0

6:3

Toro 99-3091

SCREW-CAP, HH

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

6:4

Toro 3257-42

KEY-WOODRUFF

Note: Not illustrated

$6.49

$

In Stock, Qty 12

0

7

Toro 99-3171

PIN-COTTER

$2.49

$

Usually ships in 3-6 days

0

8

Toro 3234-27

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0
