22305 TE (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

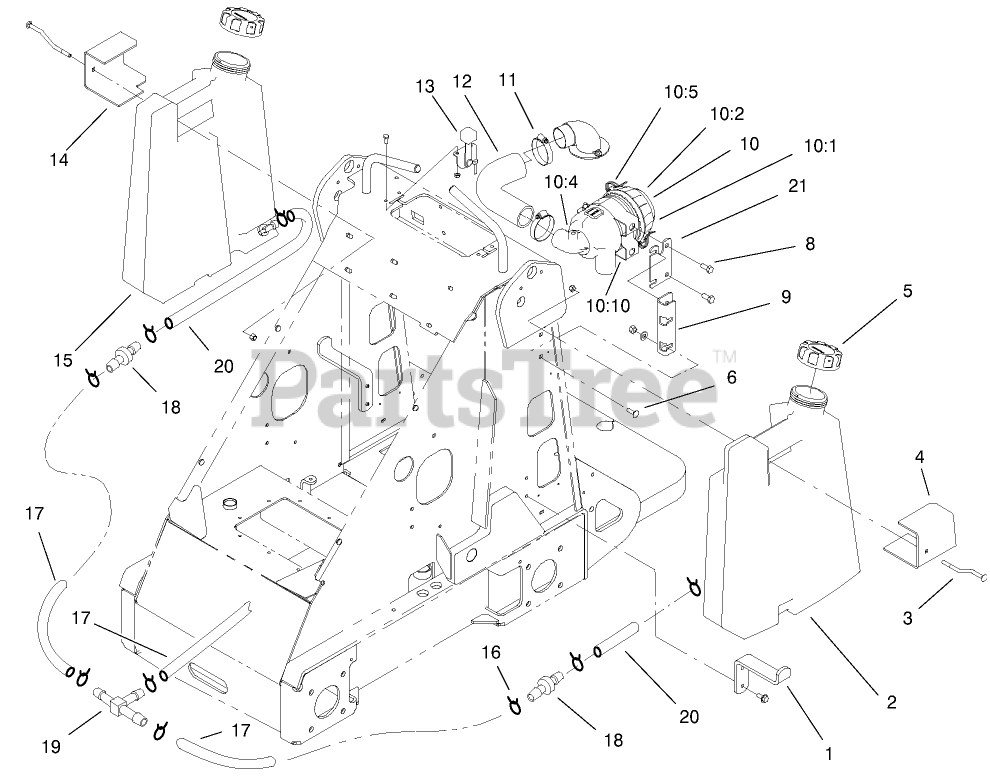

FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$36.99

$

Usually ships in 3-6 days

0

2

Toro 99-5003

Fuel Tank ASM
(Superseded to 105-4051)

$

$

Not available

2:1

Toro 104047

BUSHING
(Superseded to 46-6560)

Note: Not illustrated

$5.99

$

In Stock, Qty 12

0

2:2

Toro 104048

VALVE-FUEL

Note: Not illustrated

$33.99

$

In Stock, only 1 left!

0

2:3

Toro 99-1420

PLUG - TANK, FUEL

Note: Not illustrated

$

$

Not available

3

Toro 98-4657

BOLT-MOUNT

$41.99

$

Usually ships in 3-6 days

0

4

Toro 99-1444-03

PLATE-MOUNT, LEFT

$77.99

$

In Stock, only 1 left!

0

5

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

6

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 99-3080-03

MOUNT-CLEANER, AIR

$83.99

$

Usually ships in 3-6 days

0

10

Toro 99-3160

AIR CLEANER ASM

$341.99

$

Usually ships in 3-6 days

0

10:1

Toro 99-3184

HOUSING
(Superseded to 117-1727)

$194.99

$

In Stock, only 2 left!

0

10:2

Toro 99-3176

COVER

$89.99

$

In Stock, only 1 left!

0

10:4

Toro 99-3183

TUBE ASM
(Superseded to 99-3160)

$341.99

$

Usually ships in 3-6 days

0

10:5

Toro 99-3174

CLIP-CLEANER, AIR

$17.99

$

In Stock, Qty 11

0

10:10

Toro 99-3197

MOUNTING BRACKET ASM

$107.99

$

Usually ships in 3-6 days

0

10:3

Toro 99-3173

ELEMENT-FILTER, AIR

Note: Not illustrated

$66.99

$

In Stock, only 1 left!

0

10:6

Toro 99-3175

VALVE-EJECTOR, DUST

Note: Not illustrated

$36.99

$

Usually ships in 3-6 days

0

10:9

Toro 99-3198

FILTER-SAFETY

Note: Not illustrated

$66.99

$

Usually ships in 3-6 days

0

11

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

12

Toro 99-3144

HOSE - AIR

$

$

Not available

13

Toro 85-9310

CONTROL-CHOKE / THROTTLE

$103.99

$

Usually ships in 3-6 days

0

14

Toro 98-4655-03

PLATE-MOUNT

$69.99

$

Usually ships in 3-6 days

0

15

Toro 98-4654

Fuel Tank ASM
(Superseded to 105-4052)

$

$

Not available

15:1

Toro 104047

BUSHING
(Superseded to 46-6560)

Note: Not illustrated

$5.99

$

In Stock, Qty 12

0

15:2

Toro 104048

VALVE-FUEL

Note: Not illustrated

$33.99

$

In Stock, only 1 left!

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 99-3185

HOSE-FUEL
(Superseded to 110-5701)

$17.99

$

Usually ships in 3-6 days

0

18

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

19

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

20

Toro 99-5101

HOSE-FUEL
(Superseded to 114-3765)

$4.99

$

In Stock, only 1 left!

0

21

Toro 99-1443-03

BRACKET-MOUNT

$

$

Not available
