22305 A (322) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) HYDRAULIC MOTOR ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

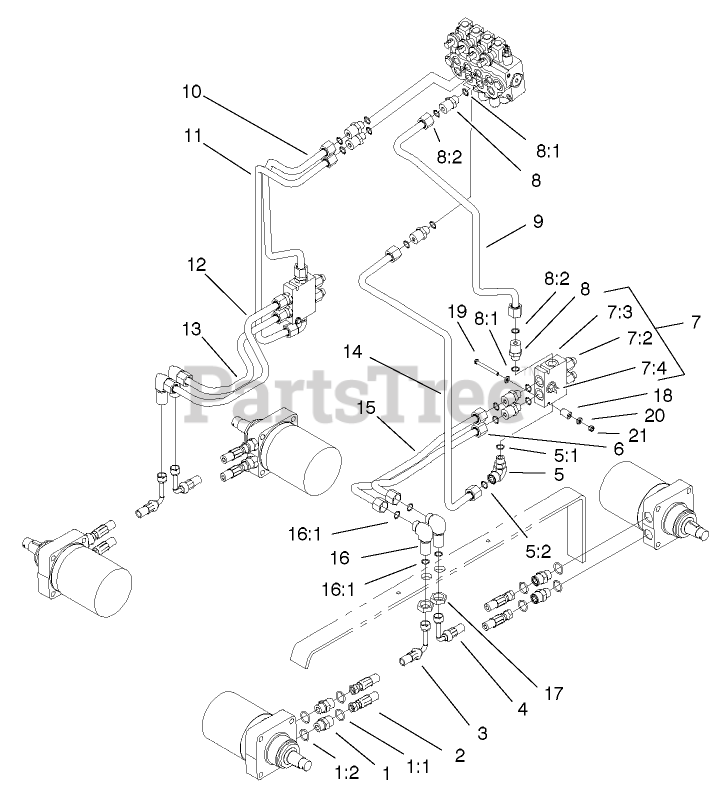

HYDRAULIC MOTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

1:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

1:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

2

Toro 99-3012

HYD HOSE ASM

$331.99

$

Usually ships in 3-6 days

0

3

Toro 99-3010

HYD HOSE ASM

$372.99

$

Usually ships in 3-6 days

0

4

Toro 99-3011

HYD HOSE ASM

$372.99

$

Usually ships in 3-6 days

0

5

Toro 340-153

Fitting-Elbow, 90 DEG

$105.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

5:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

6

Toro 99-3022

HYD TUBE ASM

$102.99

$

Usually ships in 3-6 days

0

7

Toro 99-3040

HYD COUNTERBALANCE VALVE ASM

$1842.99

$

Usually ships in 3-6 days

0

7:2

Toro 99-3271

VALVE-CARTRIDGE

$1584.99

$

Usually ships in 3-6 days

0

7:3

Toro 100-8864

MANIFOLD ASM

$1622.99

$

Usually ships in 3-6 days

0

7:4

Toro 100-8865

NEEDLE VALVE ASM

$355.99

$

Usually ships in 3-6 days

0

7:2:99

Toro 98-2712

SEAL KIT
(Superseded to 105-4099)

Note: Not illustrated

$68.99

$

Usually ships in 3-6 days

0

8

Toro 340-155

FITTING-STR

$30.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

8:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

9

Toro 99-3027

HYD TUBE ASM

$

$

Not available

10

Toro 99-3024

HYD TUBE ASM

$

$

Not available

11

Toro 99-3029

HYD TUBE ASM

$

$

Not available

12

Toro 99-3025

HYD TUBE ASM

$107.99

$

Usually ships in 3-6 days

0

13

Toro 99-3028

HYD TUBE ASM

$101.99

$

Usually ships in 3-6 days

0

14

Toro 99-3023

HYD TUBE ASM

$

$

Not available

15

Toro 99-3026

HYD TUBE ASM

$107.99

$

Usually ships in 3-6 days

0

16

Toro 340-72

FITTING-BULKHEAD, 90 DEG

$55.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

17

Toro 340-74

NUT-LOCK, BULKHEAD

$5.49

$

Usually ships in 3-6 days

0

18

Toro 99-3057

SPACER-VALVE

$17.99

$

Usually ships in 3-6 days

0

19

Toro 321-23

Screw-HH (only on: 22305)

$4.49

$

Usually ships in 3-6 days

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0
