22305 A (322) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

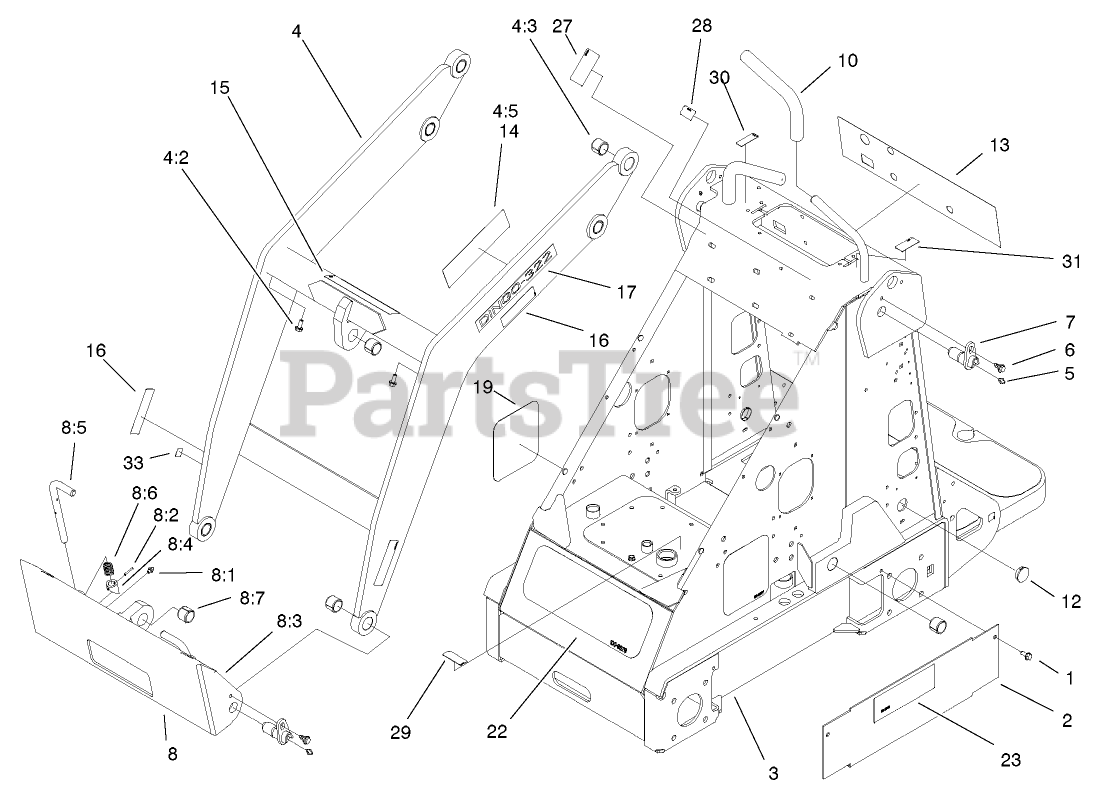

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 99-3020-01

Cover-Hose (only on: 22305)

$

$

Not available

3

Toro 104-7416

FRAME ASM
(Superseded to 105-8375)

$

$

Not available

4

Toro 100-8814

LOADER ASM
(Superseded to 106-8155)

$2349.99

$

Usually ships in 3-6 days

0

4:2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4:3

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

4:5

Toro 100-1701

DECAL-DANGER

$39.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

7

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$108.99

$

In Stock, only 2 left!

0

8

Toro 98-4690

QUICK ATTACH ASM
(Superseded to 132-8418)

$1443.99

$

Usually ships in 3-6 days

0

8:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8:2

Toro 32121-94

PIN-SPECIAL

$

$

Not available

8:3

Toro 98-4691-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1267.99

$

Usually ships in 3-6 days

0

8:4

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

8:5

$52.99

$

Usually ships in 3-6 days

0

8:6

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

8:7

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

10

Toro 98-4845

GRIP-CUSHION

$16.99

$

Usually ships in 3-6 days

0

12

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 99-3157

DECAL-PANEL, CONTROL

$67.99

$

Usually ships in 3-6 days

0

14

Toro 98-9051

DECAL-DANGER

$34.99

$

In Stock, only 1 left!

0

15

Toro 98-4682

DECAL-CAUTION

$22.99

$

Usually ships in 3-6 days

0

16

Toro 100-6141

DECAL-PINCH

$40.99

$

Usually ships in 3-6 days

0

17

Toro 99-3166

DECAL - DINGO 322

$

$

Not available

19

Toro 100-8827

Decal-Dingo, Side (only on: 22305)

$

$

Not available

22

Toro 100-8828

DECAL-DINGO, FRONT

$63.99

$

Usually ships in 3-6 days

0

23

Toro 99-3068

DECAL-4-PAW

$

$

Not available

27

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.99

$

Usually ships in 3-6 days

0

28

Toro 98-8220

DECAL-LIMITER, SPEED

$19.99

$

Usually ships in 3-6 days

0

29

Toro 85-4730

DECAL-ONLY, HYD OIL

$2.99

$

Usually ships in 3-6 days

0

30

Toro 94-2551

DECAL-CHOKE

$39.99

$

Usually ships in 3-6 days

0

31

Toro 98-8219

DECAL-THROTTLE

$18.99

$

In Stock, only 1 left!

0
