22305 A (322) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

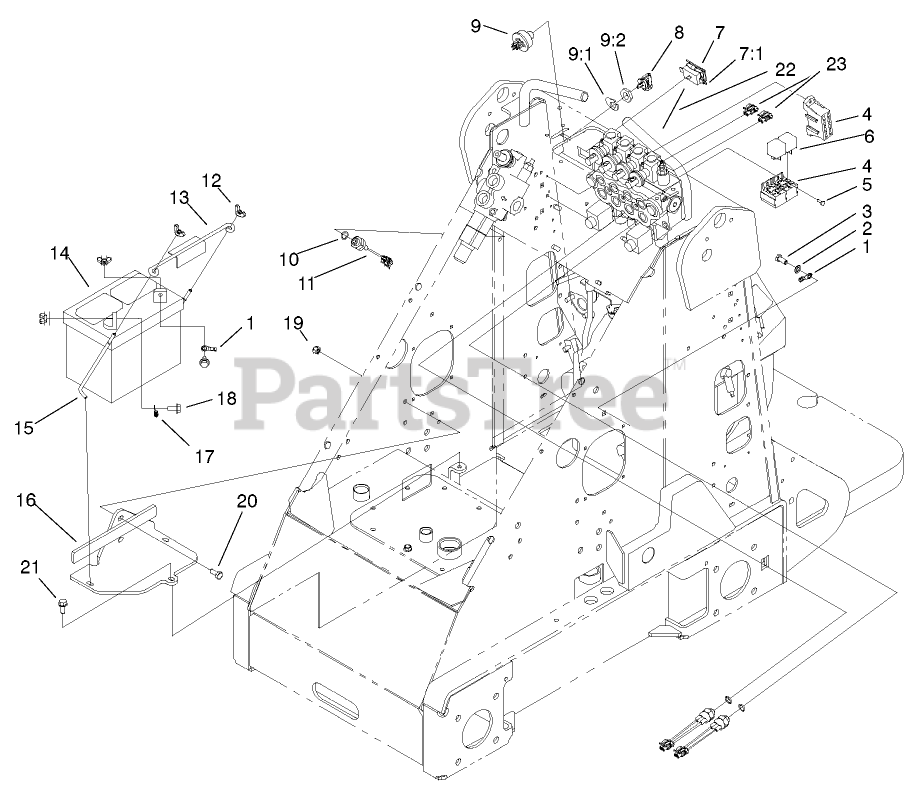

ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 111075

WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

3

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

4

Toro 104-7411

HARNESS-WIRE

$547.99

$

Usually ships in 3-6 days

0

5

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

6

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

7

Toro 104-7428

HOURMETER-INDUCTIVE, MINI

$

$

Not available

7:1

Toro 104-4234

CLIP-MOUNTING

$7.49

$

Usually ships in 3-6 days

0

8

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

9

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

9:1

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

9:2

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

10

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

11

Toro 72-4310

SWITCH-BALL

$102.99

$

Usually ships in 3-6 days

0

12

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

13

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 4 left!

0

14

Toro 94-1867

BATTERY
(Superseded to 104-2492)

$

$

Not available

15

Toro 99-5027

RETAINER-BATTERY

$13.99

$

Usually ships in 3-6 days

0

16

Toro 99-3060-03

BATTERY MOUNT ASM

$246.99

$

Usually ships in 3-6 days

0

17

Toro 100-1712

CABLE-POSITIVE

$41.99

$

Usually ships in 3-6 days

0

18

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

22

Toro 104-7408

WIRE-HOURMETER

$20.99

$

Usually ships in 3-6 days

0

23

Toro 99-1433

Connector-Female

$15.99

$

Usually ships in 3-6 days

0

99

Toro 3290-381

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 7

0
