22305 A (322) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) BLOWER HOUSING AND BAFFLES ASSEMBLY (GROUP 6) ENGINE: KOHLER CH22S PS-66559 Parts Diagram

Dingo Compact Utility Loader

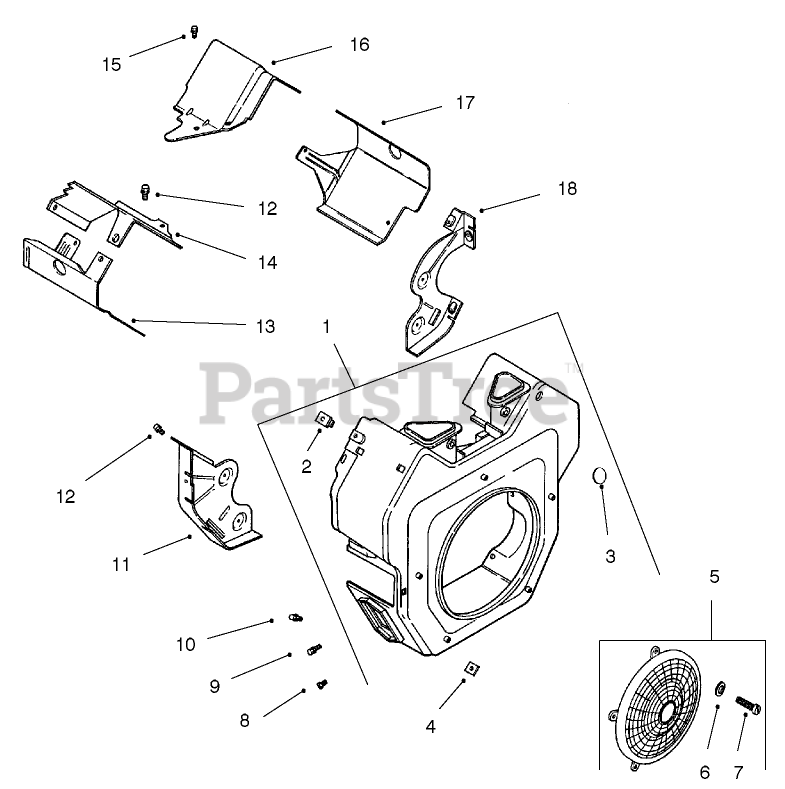

BLOWER HOUSING AND BAFFLES ASSEMBLY (GROUP 6) ENGINE: KOHLER CH22S PS-66559 Parts Diagram

  • Title

1

Kohler 24 027 40-S

Housing-Blower(Includes 2-5)
(Superseded to 24 027 479-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$166.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 02-S

NUT-PLASTIC

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

5

Kohler 24 755 81-S

Kit-Guard, Fixed(Includes 6, 7,24 332 01-S &24 113 18-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$52.99

$

In Stock, only 2 left!

0

6

Kohler 24 468 10-S

Washer-plain (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

7

Kohler 24 086 35-S

SCREW-LBD SOCKET PAN, M5X0.8X10

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

8

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

9

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

10

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

11

Toro 24 146 02-S

Plate-Backing #2 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

12

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

13

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

15

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

16

Kohler 24 063 24-S

Baffle-Valley, No. 1 side
(Superseded to 24 063 59-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

17

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

18

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 5

0

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Not illustrated

$3.49

$

In Stock, Qty 5

0

Kohler 24 113 18-S

DECAL-SCREEN, GRASS
(Superseded to 24 113 499-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 113 18-S

DECAL-SCREEN, GRASS
(Superseded to 24 113 499-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 113 96-S

Decal-22HP

Note: Not illustrated

$

$

Not available

Kohler 24 113 96-S

Decal-22HP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
