22305 A (322) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200000500) (2000) HYDRAULIC CYLINDERS ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

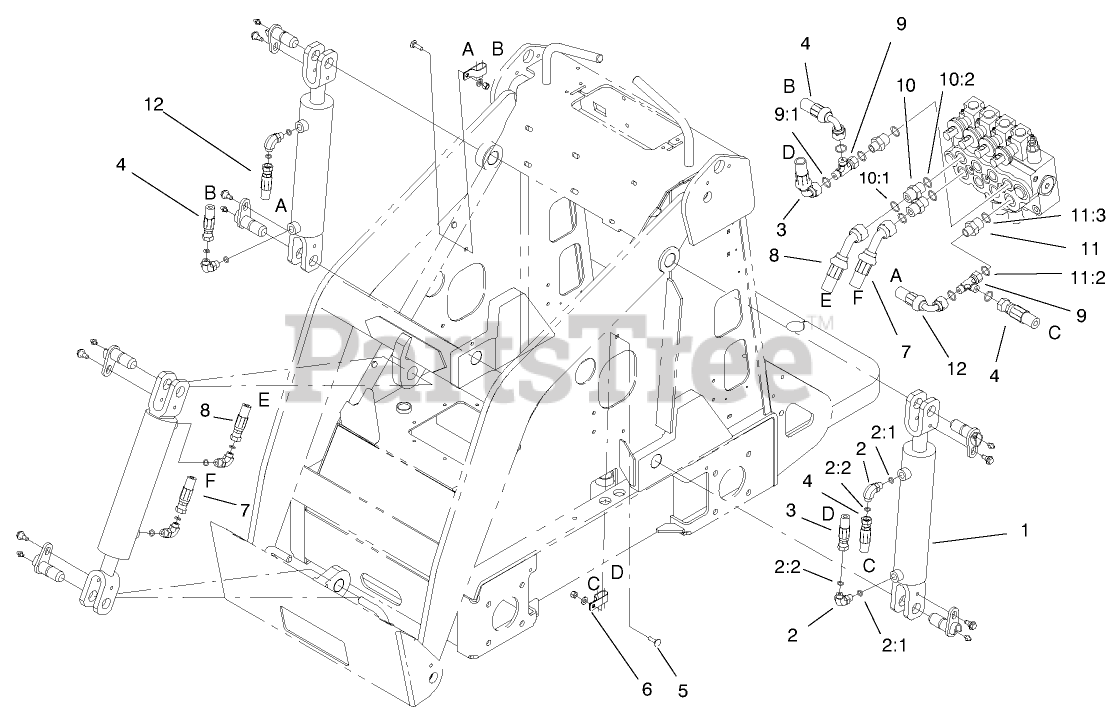

HYDRAULIC CYLINDERS ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4163

CYLINDER KIT

$2087.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-3065

SEAL KIT

Note: Not illustrated

$528.99

$

Usually ships in 3-6 days

0

2

Toro 340-82

FITTING-ELBOW 90

$24.99

$

In Stock, only 2 left!

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

2:2

Toro 237-35

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 5

0

3

Toro 98-4748

HYD HOSE ASM

$204.99

$

Usually ships in 3-6 days

0

4

Toro 98-4725

HOSE-HYD

$211.99

$

Usually ships in 3-6 days

0

5

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

6

Toro 2412-137

CLAMP-R, DOUBLE

$7.49

$

Usually ships in 3-6 days

0

7

Toro 98-4726

HOSE-HYD

$276.99

$

Usually ships in 3-6 days

0

8

Toro 98-4727

HOSE-HYD

$259.99

$

Usually ships in 3-6 days

0

9

Toro 340-151

FITTING-HYD

$111.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 5

0

10

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

10:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

11

Toro 340-133

FITTING-STR

$50.99

$

Usually ships in 3-6 days

0

11:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

11:3

Toro 237-35

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 5

0

12

Toro 99-3109

HYD HOSE ASM

$

$

Not available
