22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) HYDRAULIC MOTOR ASSEMBLY NO. 99-3052 Parts Diagram

Dingo Compact Utility Loader

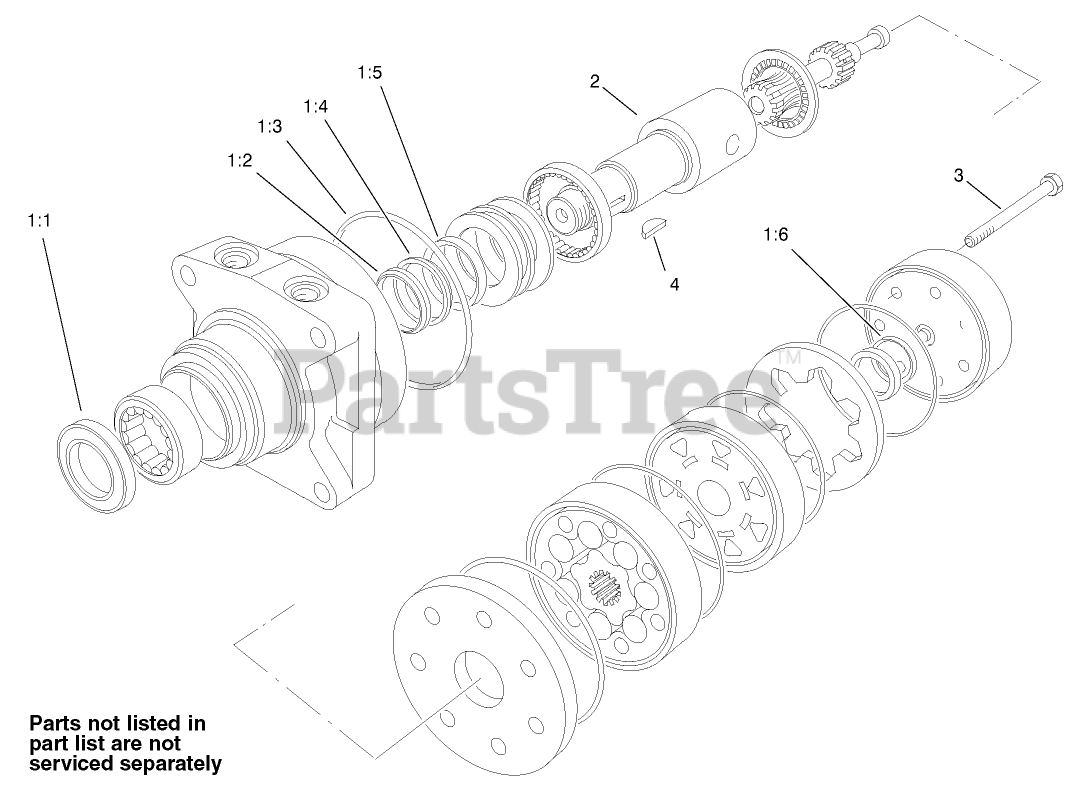

HYDRAULIC MOTOR ASSEMBLY NO. 99-3052 Parts Diagram

  • Title

1:1

SEAL-DIRT AND WATER

Note: Not serviced separately

$

$

Not available

1:2

Washer-Backup

Note: Not serviced separately

$

$

Not available

1:3

Seal-Ring

Note: Not serviced separately

$

$

Not available

1:4

Washer-Backup

Note: Not serviced separately

$

$

Not available

1:5

Seal-Inner

Note: Not serviced separately

$

$

Not available

1:6

Seal-Commutator

Note: Not serviced separately

$

$

Not available

1

Toro 94-8178

SEAL KIT
(Superseded to 100-6131)

$109.99

$

Usually ships in 3-6 days

0

2

Toro 99-3090

SHAFT-COUPLING

$575.99

$

Usually ships in 3-6 days

0

3

Toro 99-3091

SCREW-CAP, HH

$16.99

$

Usually ships in 3-6 days

0

4

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0
