22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) GROUP 10-AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH22S-66559 Parts Diagram

Dingo Compact Utility Loader

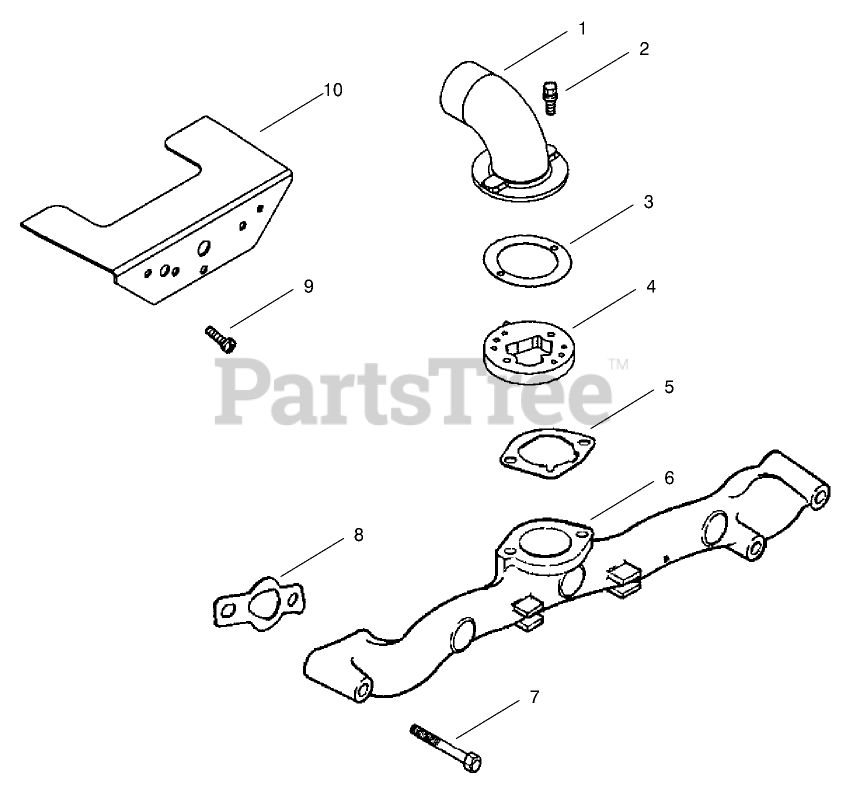

GROUP 10-AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH22S-66559 Parts Diagram

  • Title

1

Kohler 24 029 21-S

Adapter-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$138.99

$

Usually ships in 2-5 days

0

2

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 041 34-S

Gasket-Adapter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 24 029 26-S

Adapter ASM
(Superseded to 24 029 97-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$177.99

$

In Stock, only 1 left!

0

5

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

6

Kohler 24 164 14-S

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

7

Kohler M-651055-S

Screw-HF
(Superseded to 25 086 84-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$1.99

$

In Stock, Qty 20+

0

8

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 9

0

9

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

10

Kohler 24 314 25-S

Shield-Debris

Note: Call PartsTree Customer Service for more information on Kohler Parts

$44.99

$

Usually ships in 2-5 days

0

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Not available

Kohler 24 146 25-S

Decal-22HP
(Superseded to 24 113 96-S)

Note: Not illustrated

$

$

Not available

Kohler 24 146 25-S

Decal-22HP
(Superseded to 24 113 96-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
