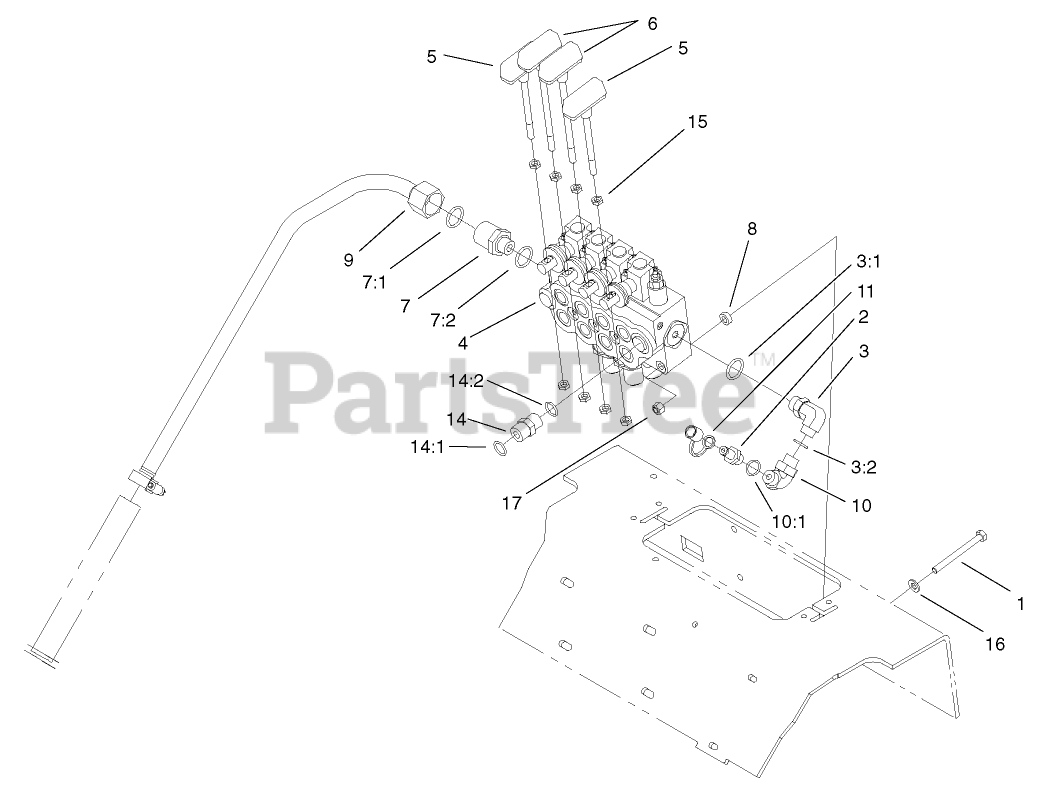

22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) 4-SPOOL VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

4-SPOOL VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

2

Toro 86-5480

NIPPLE-TEST

$75.99

$

Usually ships in 3-6 days

0

3

Toro 340-18

FITTING-HYD, 90 DEG

$41.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

3:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

4

Toro 99-3070

VALVE-HYD, 4-SPOOL

$

$

Not available

5

Toro 98-4671

CYLINDER HANDLE ASM

$31.99

$

In Stock, only 1 left!

0

6

Toro 98-4670

DRIVE HANDLE ASM

$

$

Not available

7

Toro 98-9921

FITTING-STR

$57.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-145

O-RING
(Superseded to 237-58)

$3.49

$

Usually ships in 3-6 days

0

7:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

8

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

9

Toro 99-3021

HYD TUBE ASM

$

$

Not available

10

Toro 340-159

FITTING-HYD, 90 DEG

$63.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

11

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

14

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

14:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

14:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

15

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
