Toro 22305 (322) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) ENGINE AND PUMP ASSEMBLY Parts Lookup with Diagrams

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

2

Toro 98-4666-03

MOUNT-ENGINE

$130.99

$

Usually ships in 3-6 days

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

4

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 3 left!

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

6

Engine-Kohler, 22 HP (Ch22s Ps-66559)

$

Not available 

6:1

Toro 92-6780

NUT-HF

(Superseded to 33004-00) 

$0.99

$

In Stock, Qty 9

6:2

Toro 93-0350

GASKET-EXHAUST

(Superseded to 110-6697) 

$

Not available 

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

8

Toro 99-3115-03

SHIELD-MUFFLER

$143.99

$

Usually ships in 3-6 days

9

Toro 99-3138

SUPPORT-SHIELD

(Superseded to 99-3138-03) 

$36.99

$

Usually ships in 3-6 days

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

11

Toro 2112-9

CLAMP

$9.99

$

Usually ships in 3-6 days

12

Toro 100-1711

MUFFLER-KOHLER

(Superseded to 105-8381) 

$518.99

$

In Stock, only 1 left!

13

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

14

Toro 98-2751-03

MOUNT-PUMP

$264.99

$

Usually ships in 3-6 days

15

Toro 98-4701

HUB-PUMP

$77.99

$

Usually ships in 3-6 days

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

17

Toro 71-4411

SPACER

$3.49

$

In Stock, only 3 left!

18

Toro 44-2230

COUPLING-RUBBER

(Superseded to 115-4523) 

$56.99

$

In Stock, Qty 20+

19

Toro 27-1960

HUB-ENGINE

(Superseded to 110-5236) 

$39.99

$

In Stock, only 2 left!

20

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

24

Toro 98-4702

PUMP-GEAR, TANDEM

$2322.99

$

Usually ships in 3-6 days

24:1

Toro 98-4700

KEY-SQUARE

$16.99

$

Usually ships in 3-6 days

24:2

Toro 99-1353

SEAL KIT

Note: Not illustrated

$129.99

$

Usually ships in 3-6 days

25

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

26

Toro 99-3017

FITTING

$95.99

$

In Stock, only 1 left!

26:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

27

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

28

Toro 99-3046

HOSE-SUCTION, FORMED

$242.99

$

Usually ships in 3-6 days

29

Toro 354-78

FITTING-STR

$62.99

$

Usually ships in 3-6 days

29:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

32

Toro 99-3116-03

SPACER-BAR

$21.99

$

Usually ships in 3-6 days

33

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

35

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

36

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

37

Toro 98-4667

HOSE

$31.99

$

Usually ships in 3-6 days

38

Toro 32144-18

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

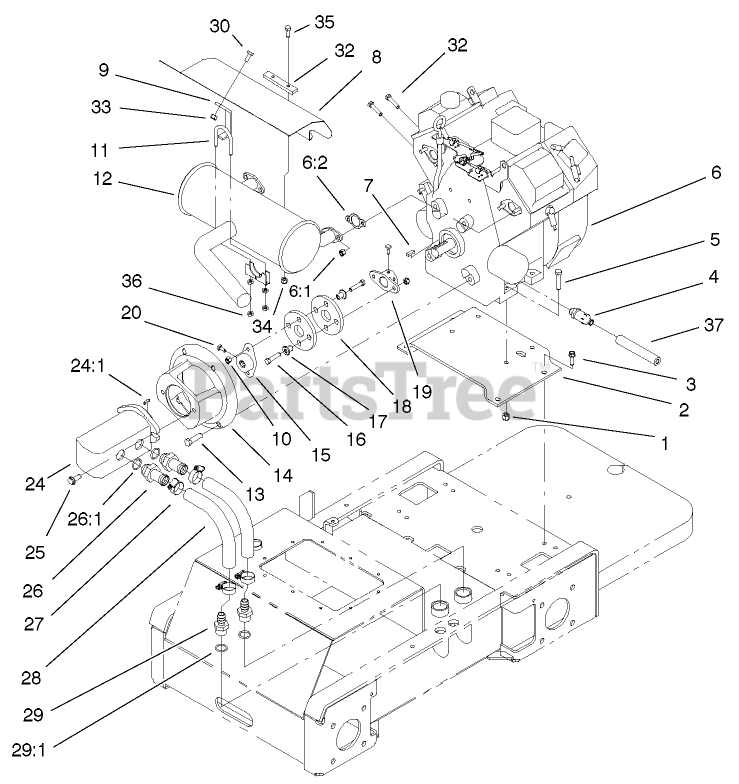

22305 (322) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) ENGINE AND PUMP ASSEMBLY Parts Diagram

ENGINE AND PUMP ASSEMBLY Parts Diagram
