22305 (322) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) GROUP 8-FUEL SYSTEM Parts Diagram

Dingo Compact Utility Loader

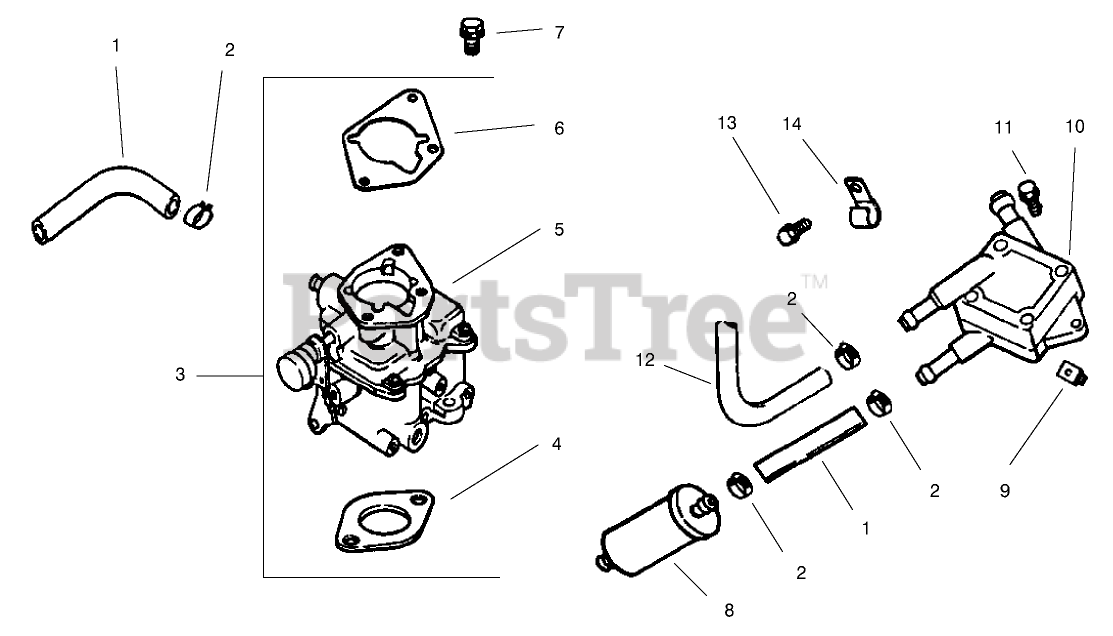

GROUP 8-FUEL SYSTEM Parts Diagram

  • Title

1

2535310

Line fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

3

2485343

Kit, carburetor w/gasket (Includes 4-6)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 19

0

5

Toro 24 053 43

Carburetor assembly

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

5

Toro 24 053 43

Carburetor assembly

Note: For information only; Not available separately.

$

$

Currently unavailable

6

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, Qty 9

0

7

Kohler M-0651030

Screw
(Superseded to M-651030-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 050 02

Filter-Fuel
(Superseded to 24 050 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

10

2439304

Pump-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

24 08612

Screw, hex. cap

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 353 04

Line, fuel17"
(Superseded to 25 111 81-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 4 left!

0

13

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

14

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, only 4 left!

0
