22305 (322) - Toro Dingo Compact Utility Loader (SN: 099001008 - 099999999) (1999) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

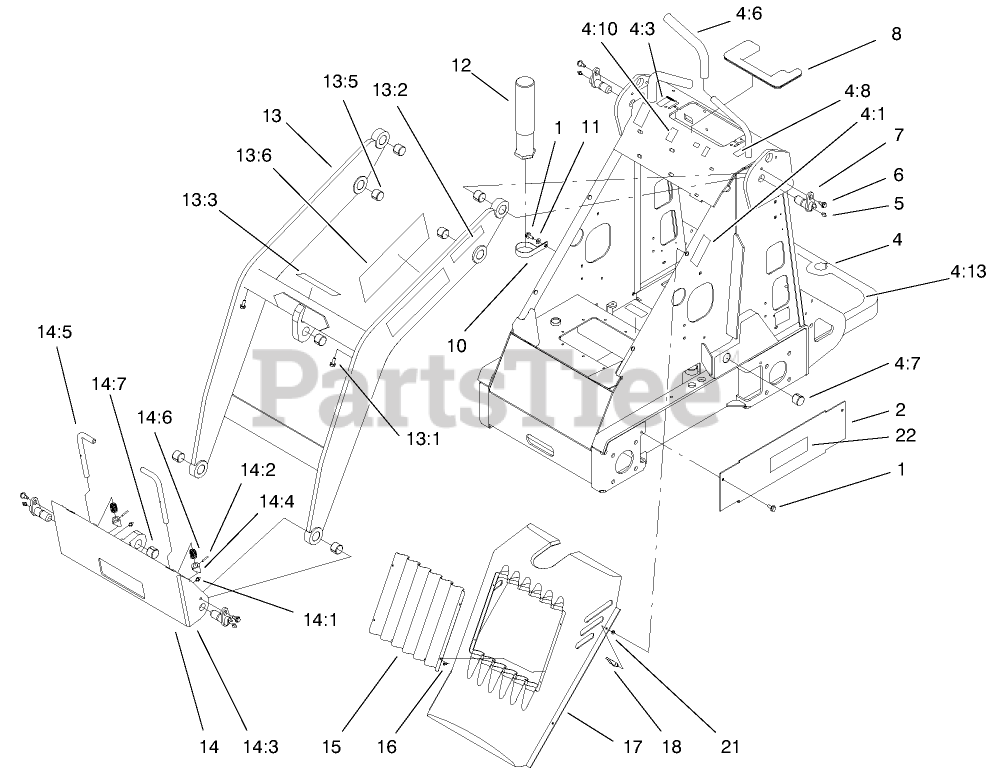

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 99-3020

Cover-Hose
(Superseded to 99-3020-01)

$

$

Not available

4

Toro 99-3145

Frame & Decal ASM
(Superseded to 105-8375)

$10352.99

$

Usually ships in 3-6 days

0

4:1

Toro 80-8010

DECAL-WARNING, KEEP HANDS AWAY

$21.99

$

Usually ships in 3-6 days

0

4:3

Toro 94-2551

DECAL-CHOKE

$38.99

$

Usually ships in 3-6 days

0

4:6

Toro 98-4845

GRIP-CUSHION

$15.99

$

Usually ships in 3-6 days

0

4:7

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

4:8

Toro 98-8219

DECAL-THROTTLE

$17.99

$

In Stock, only 1 left!

0

4:10

Toro 98-8235

DECAL-SELECTOR

$17.99

$

Usually ships in 3-6 days

0

4:13

Toro 98-9947

TREAD-FOOT

$34.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 8

0

7

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$105.99

$

In Stock, only 1 left!

0

8

Toro 99-3155

COVER-VALVE

$

$

Not available

10

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

13

Toro 99-1354

Loader ASM
(Superseded to 106-8155)

$2282.99

$

Usually ships in 3-6 days

0

13:1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 80-8010

DECAL-WARNING, KEEP HANDS AWAY

$21.99

$

Usually ships in 3-6 days

0

13:3

Toro 98-4682

DECAL-CAUTION

$22.99

$

Usually ships in 3-6 days

0

13:5

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

13:6

Toro 98-9051

DECAL-DANGER

$33.99

$

In Stock, only 1 left!

0

14

Toro 98-4690

QUICK ATTACH ASM
(Superseded to 132-8418)

$1402.99

$

Usually ships in 3-6 days

0

14:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14:2

Toro 32121-94

PIN-SPECIAL

$

$

Not available

14:3

Toro 98-4691-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1232.99

$

Usually ships in 3-6 days

0

14:4

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

14:5

Toro 98-4693

Pin-Quick Attach
(Superseded to 100-3373)

$50.99

$

Usually ships in 3-6 days

0

14:6

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

14:7

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

15

Toro 99-3147

Grille-Screen
(Superseded to 99-3147-03)

$483.99

$

Usually ships in 3-6 days

0

16

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

17

Toro 99-3137

Cover-Hood
(Superseded to 99-3164)

$701.99

$

Usually ships in 3-6 days

0

18

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 12

0

21

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

22

Toro 99-3068

DECAL-4-PAW

$

$

Not available
