22305 (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099001007) (1999) HYDRAULIC VALVES ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

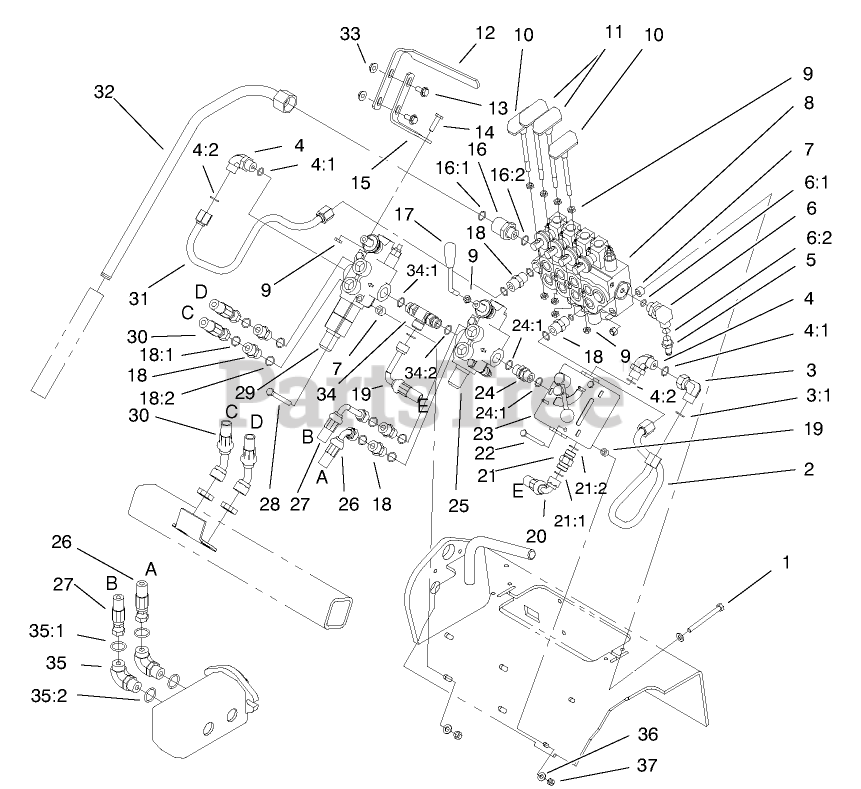

HYDRAULIC VALVES ASSEMBLY Parts Diagram

  • Title

1

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

2

Toro 99-3030

HYD TUBE ASM

$

$

Not available

3

Toro 94-6031

FITTING-HYD

$81.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

4

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

4:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

4:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

5

Toro 354-85

NIPPLE-DIAGNOSTIC

$

$

Not available

6

Toro 354-86

ADAPTER - 90 DEG

$56.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

5

Toro 86-5480

NIPPLE-TEST

$79.99

$

Usually ships in 3-6 days

0

6

Toro 340-18

FITTING-HYD, 90 DEG

$42.99

$

Usually ships in 3-6 days

0

6:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

7

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

8

Toro 99-3032

Valve-Hydraulic
(Superseded to 99-3070)

$

$

Not available

8:1

Toro 98-4720

SEAL KIT

Note: Not illustrated

$

$

Not available

9

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

10

Toro 98-4671

CYLINDER HANDLE ASM

$32.99

$

Usually ships in 3-6 days

0

11

Toro 98-4670

DRIVE HANDLE ASM

$

$

Not available

12

Toro 98-9090

GRIP-CONTROL

$113.99

$

Usually ships in 3-6 days

0

13

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

14

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

15

Toro 99-1376

MOUNT-CONTROL

$

$

Not available

16

Toro 98-9921

FITTING-STR

$58.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-145

O-RING
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

16:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

17

Toro 98-4729

LEVER-VALVE

$82.99

$

In Stock, only 1 left!

0

18

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

18:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

18:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

19

Toro 98-4799

SPACER

$7.99

$

In Stock, Qty 20+

0

20

Toro 98-4744

HOSE ASM

$288.99

$

Usually ships in 3-6 days

0

21

Toro 98-4735

VALVE-CHECK, HYD

$296.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

21:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

22

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

23

Toro 99-3018

Valve-Hyd
(Superseded to 104-4221)

$941.99

$

Usually ships in 3-6 days

0

23:1

Toro 98-9097

KIT-SEAL, VALVE

Note: Not illustrated

$

$

Not available

23:2

Toro 98-9098

HANDLE HARDWARE KIT

Note: Not illustrated

$63.99

$

Usually ships in 3-6 days

0

24

Toro 95-3209

FITTING-THREAD, STRAIGHT

$27.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

25

Toro 98-4731

Valve-Hyd
(Superseded to 99-3072)

$1026.99

$

Usually ships in 3-6 days

0

25:1

Toro 98-4721

SEAL KIT
(Superseded to 99-4390)

Note: Not illustrated

$146.99

$

Usually ships in 3-6 days

0

26

Toro 98-4747

HOSE-HYD

$269.99

$

Usually ships in 3-6 days

0

27

Toro 99-3008

HOSE-HYD

$256.99

$

Usually ships in 3-6 days

0

28

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

29

Toro 98-4730

Valve-Hyd
(Superseded to 99-3077)

$1895.99

$

Usually ships in 3-6 days

0

29:1

Toro 98-4721

SEAL KIT
(Superseded to 99-4390)

Note: Not illustrated

$146.99

$

Usually ships in 3-6 days

0

30

Toro 98-4728

HOSE-AUX, HYD

$

$

Not available

31

Toro 98-4724

HYD TUBE ASM

$123.99

$

In Stock, only 1 left!

0

32

Toro 99-3021

HYD TUBE ASM

$

$

Not available

33

Toro 32128-44

NUT

$2.99

$

Usually ships in 3-6 days

0

34

Toro 98-9079

ADAPTER-TEE, ADJUSTABLE

$250.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

34:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

35

Toro 340-105

FITTING-ELBOW 90

$44.99

$

In Stock, only 1 left!

0

35:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

35:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

36

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

99

Toro 3290-379

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, only 3 left!

0

99

Toro 3296-27

NUT-LOCK, NI

Note: Not illustrated

$1.49

$

In Stock, Qty 10

0

99

Toro 505-33

LOCTITE-243

Note: Not illustrated

$

$

Currently unavailable
