22305 (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099001007) (1999) GROUP 6-BLOWER HOUSING & BAFFLES Parts Diagram

Dingo Compact Utility Loader

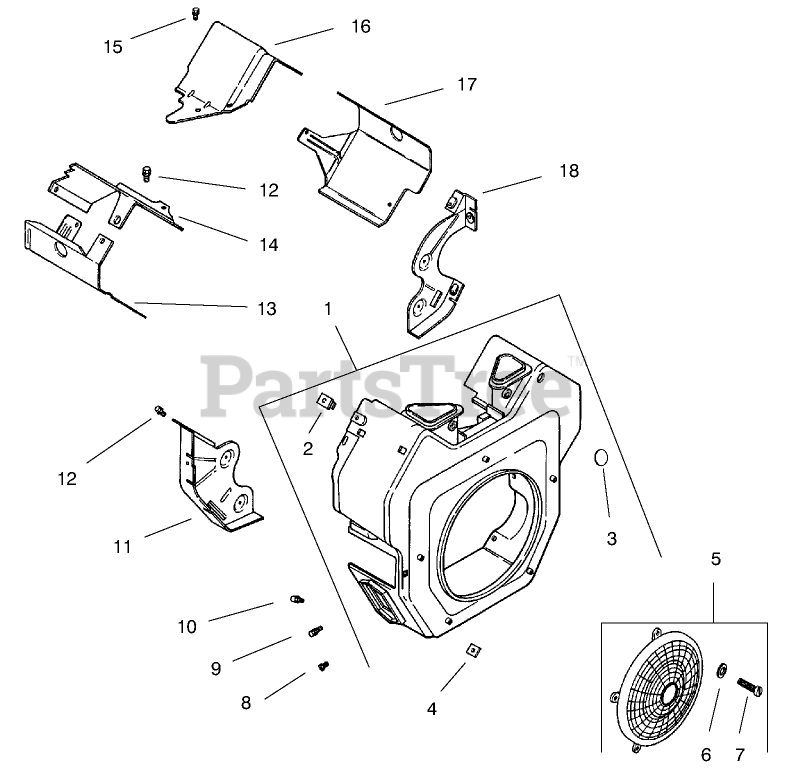

GROUP 6-BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

2402740

Housing, blower (Includes 2-5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 139 16

Plug-Button
(Superseded to 25 139 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

5

2475581

Kit, Fixed Gurard (Includes 6&7)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

2446810

Washer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

2408635

Screw, panhead

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

9

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

10

Kohler M-0545020

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

2414602

Plate-Backing #2 Side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

13

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 24 063 17

Baffle-Valley, #2 side
(Superseded to 24 063 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

15

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

16

Kohler 24 063 24

Baffle-Valley, #1 Side
(Superseded to 24 063 24-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

17

2406308

Baffle, cylinder barrel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

2414608

Plate-Backing #1

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411362

Decal, HP

Note: Not illustrated

$

$

Not available

2411362

Decal, HP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2511321

Decal, Pro

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2511321

Decal, Pro

Note: Not illustrated

$

$

Not available
