22305 (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099001007) (1999) ENGINE AND PUMP ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

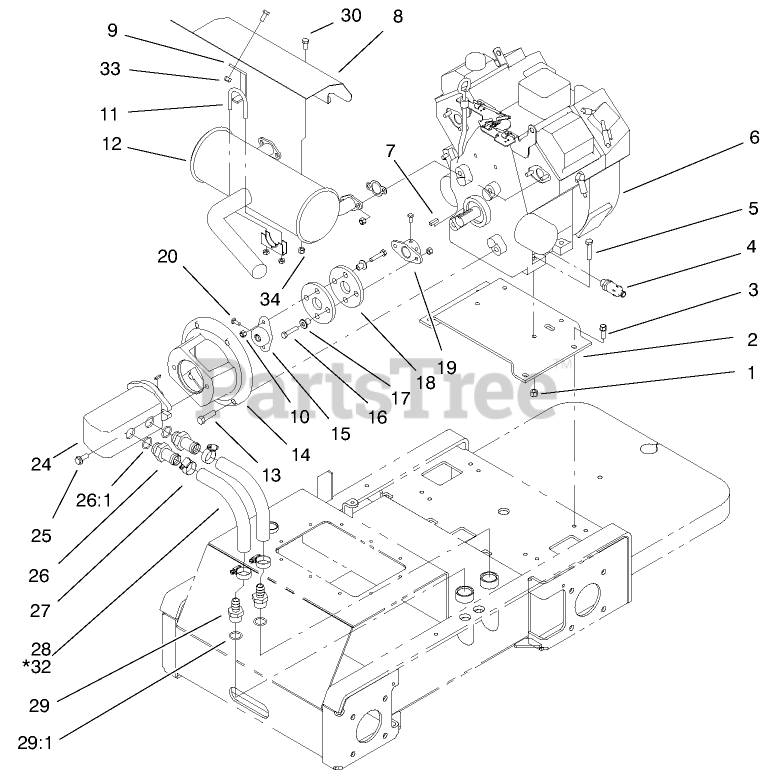

ENGINE AND PUMP ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 98-4666-03

MOUNT-ENGINE

$124.99

$

Usually ships in 3-6 days

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Engine-Kohler 22hp CH22S PS-66557

$

$

Not available

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 8

0

8

Toro 99-3136

SHIELD - MUFFLER B

$

$

Not available

9

Toro 99-3138

SUPPORT-SHIELD
(Superseded to 99-3138-03)

$34.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 2112-9

CLAMP

$9.99

$

Usually ships in 3-6 days

0

12

Toro 100-1711

MUFFLER-KOHLER
(Superseded to 105-8381)

$493.99

$

Usually ships in 3-6 days

0

13

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 98-2751-03

MOUNT-PUMP

$251.99

$

Usually ships in 3-6 days

0

15

Toro 98-4701

HUB-PUMP

$73.99

$

Usually ships in 3-6 days

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 71-4411

SPACER

$2.99

$

In Stock, Qty 7

0

18

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

19

Toro 27-1960

HUB-ENGINE
(Superseded to 110-5236)

$37.99

$

In Stock, only 1 left!

0

20

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

24

Toro 98-4702

PUMP-GEAR, TANDEM

$2211.99

$

Usually ships in 3-6 days

0

24:1

Toro 98-4700

KEY-SQUARE

$15.99

$

Usually ships in 3-6 days

0

24:2

Toro 99-1353

SEAL KIT

Note: Not illustrated

$123.99

$

Usually ships in 3-6 days

0

25

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

26

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

26:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

27

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

28

Toro 99-3178

HOSE - HYDRAULIC SUCTION

$59.99

$

Usually ships in 3-6 days

0

29

Toro 354-78

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

30

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

31

Toro 98-4667

HOSE

Note: Not illustrated

$29.99

$

Usually ships in 3-6 days

0

32

Toro 99-3059

SPRING-COMPRESSION

Note: Not illustrated

$

$

Not available

33

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

34

Toro 32151-4

Nut-Lok

$

$

Currently unavailable
