22304 (222) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) HYDRAULIC ASSEMBLY (CONINTUED) Parts Diagram

Dingo Compact Utility Loader

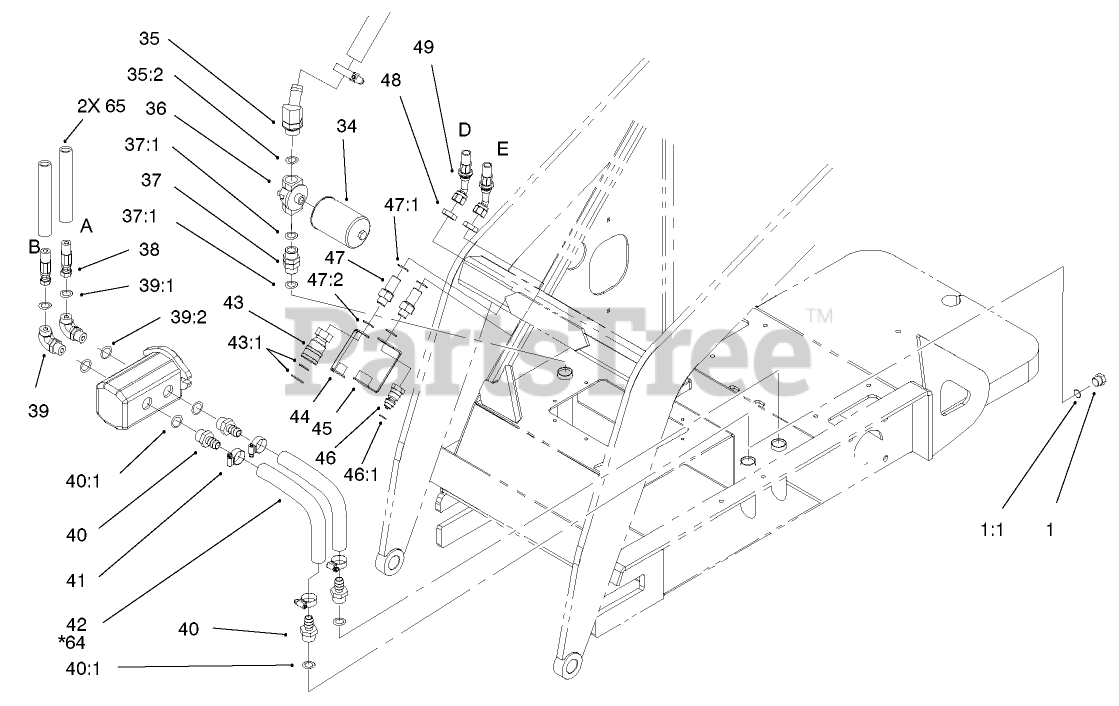

HYDRAULIC ASSEMBLY (CONINTUED) Parts Diagram

  • Title
1

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

34

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, Qty 14

0

35

Toro 354-127

ELBOW-45 DEG

$90.99

$

Usually ships in 3-6 days

0

35:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

36

Toro 92-5821

HEAD-FILTER

$199.99

$

Usually ships in 3-6 days

0

37

Toro 98-9906

FITTING-THREAD, STRAIGHT

$74.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

38

Toro 98-4747

HOSE-HYD

$269.99

$

Usually ships in 3-6 days

0

39

Toro 340-105

FITTING-ELBOW 90

$44.99

$

In Stock, only 1 left!

0

39:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

39:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

40

Toro 354-73

FITTING-STRAIGHT

$41.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

41

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

42

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

In Stock, only 2 left!

0

43

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

43:1

Toro 100-6119

KIT-SEAL

$110.99

$

Usually ships in 3-6 days

0

44

Toro 100-8816

CAP-DUST, COUPLER

$15.99

$

Usually ships in 3-6 days

0

45

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

Usually ships in 3-6 days

0

46

Toro 100-4235

NIPPLE-FACE, FLUSH
(Superseded to 106-7692)

$240.99

$

Usually ships in 3-6 days

0

46:1

Toro 100-6120

SEAL KIT

$107.99

$

Usually ships in 3-6 days

0

47

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

47:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

47:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

48

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

0

49

Toro 100-8817

HOSE-HYD

$403.99

$

Usually ships in 3-6 days

0

64

Toro 99-5349

Spring-Compression

$10.99

$

Usually ships in 3-6 days

0

65

Toro 100-8818

SLEEVE-GUARD, HOSE
(Superseded to 108-9715)

$46.99

$

Usually ships in 3-6 days

0

Toro 3290-379

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, only 3 left!

0

Toro 3296-27

NUT-LOCK, NI

Note: Not illustrated

$1.49

$

In Stock, Qty 10

0
