22304 (222) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) FRONT WHEEL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

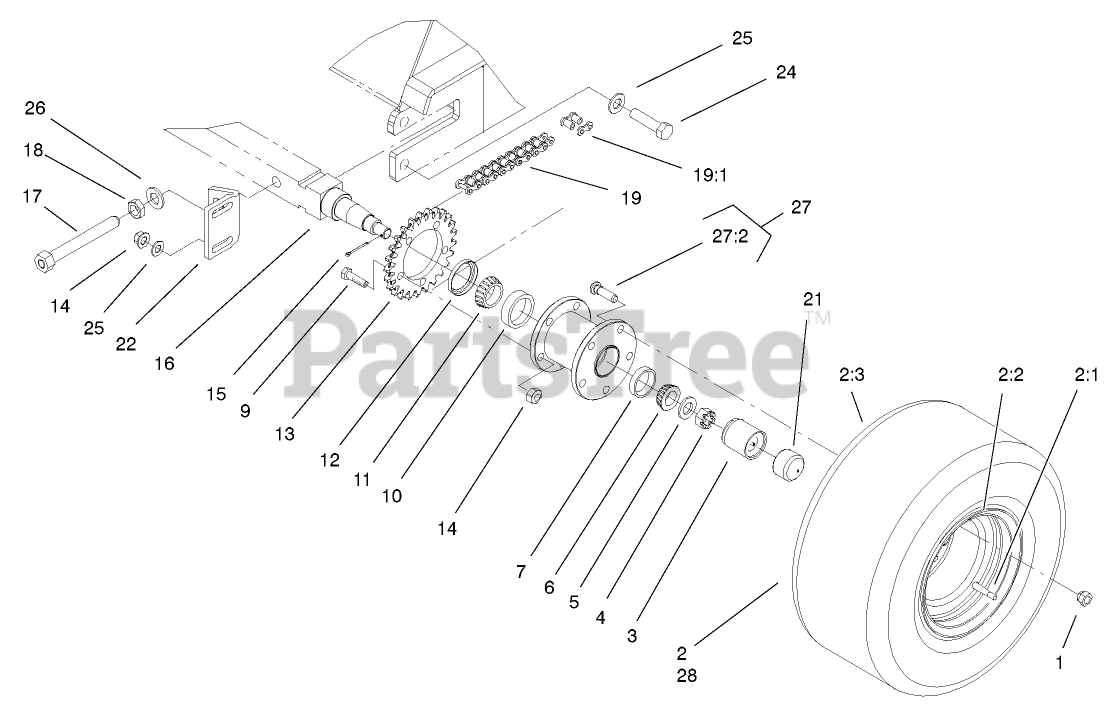

FRONT WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

2

Toro 98-2747

LH WHEEL AND TIRE ASM

$

$

Not available

2:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

2:2

Toro 98-2748

WHEEL

$

$

Not available

2:3

Toro 98-2749

TIRE

$347.99

$

In Stock, only 4 left!

0

3

Toro 100-3769

PROTECTOR-BEARING

$61.99

$

Usually ships in 3-6 days

0

4

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

5

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

6

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

7

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

9

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

10

Toro 254-107

CUP-BEARING, TAPERED

$11.99

$

In Stock, only 2 left!

0

11

Toro 254-106

CONE-BEARING, TAPERED

$23.99

$

Usually ships in 3-6 days

0

12

Toro 98-4705

SEAL-BEARING, WHEEL

$33.99

$

Usually ships in 3-6 days

0

13

Toro 98-9937-01

Sprocket-25 Tooth
(Superseded to 98-9937)

$255.99

$

Usually ships in 3-6 days

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

16

Toro 98-4825

AXLE

$1012.99

$

Usually ships in 3-6 days

0

17

Toro 98-4706

BOLT-TENSION

$79.99

$

Usually ships in 3-6 days

0

18

Toro 3218-7

NUT-JAM

$5.49

$

Usually ships in 3-6 days

0

19

Toro 98-4906

CHAIN-ROLLER

$297.99

$

Usually ships in 3-6 days

0

19:1

Toro 98-9089

LINK-CONNECTING

$18.99

$

In Stock, only 1 left!

0

21

Toro 100-3809

CAP-PROTECTOR, BEARING

$10.99

$

Usually ships in 3-6 days

0

22

Toro 99-5106-03

BRACKET-AXLE

$51.99

$

Usually ships in 3-6 days

0

24

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

25

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

27

Toro 100-9989

FRONT HUB ASM

$541.99

$

Usually ships in 3-6 days

0

27:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

28

Toro 99-1447

RH WHEEL AND TIRE ASM

$

$

Not available
