22304 (222) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) AIR INTAKE/FILTRATION-KOHLER CH22S 66560 Parts Diagram

Dingo Compact Utility Loader

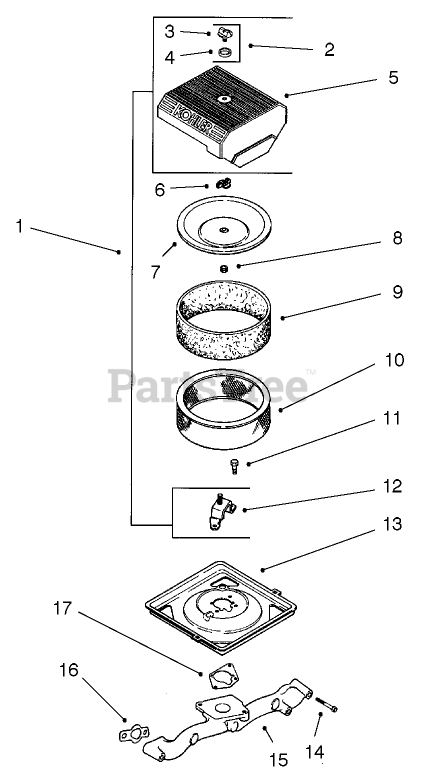

AIR INTAKE/FILTRATION-KOHLER CH22S 66560 Parts Diagram

  • Title
1

2474305

Kit, air cleaner cover (Includes 2-5, 12)

Note: Obtain parts from you local Kohler dealer

$

$

Not available

2

5475501

Kit, knob with sea (Includes 3,4)

Note: Obtain parts from you local Kohler dealer

$

$

Not available

3

2534103

Knob-Cover

Note: Obtain parts from you local Kohler dealer

$

$

Not available

4

2415315

O-Ring

Note: Obtain parts from you local Kohler dealer

$

$

Not available

5

2409624

Cover-Air Cleaner

Note: Obtain parts from you local Kohler dealer

$

$

Not available

6

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Obtain parts from you local Kohler dealer

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

Note: Obtain parts from you local Kohler dealer

$16.99

$

In Stock, only 1 left!

0

8

2403203

Seal, insert

Note: Obtain parts from you local Kohler dealer

$

$

Not available

9

2408302

Bement-Precleaner

Note: Obtain parts from you local Kohler dealer

$

$

Not available

10

4708303

Bement-Air Cleaner

Note: Obtain parts from you local Kohler dealer

$

$

Not available

11

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Obtain parts from you local Kohler dealer

$2.49

$

In Stock, Qty 6

0

12

2412621

Bracket-Air Cleaner

Note: Obtain parts from you local Kohler dealer

$

$

Not available

13

2409403

Base-Air Cleaner

Note: Obtain parts from you local Kohler dealer

$

$

Not available

14

Kohler M-0651055

Screw
(Superseded to 25 086 766-S)

Note: Obtain parts from you local Kohler dealer

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14

Manifold
(Superseded to 24 164 14-S)

Note: Obtain parts from you local Kohler dealer

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

Note: Obtain parts from you local Kohler dealer

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Obtain parts from you local Kohler dealer

$2.99

$

In Stock, Qty 19

0
