22304 (222) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

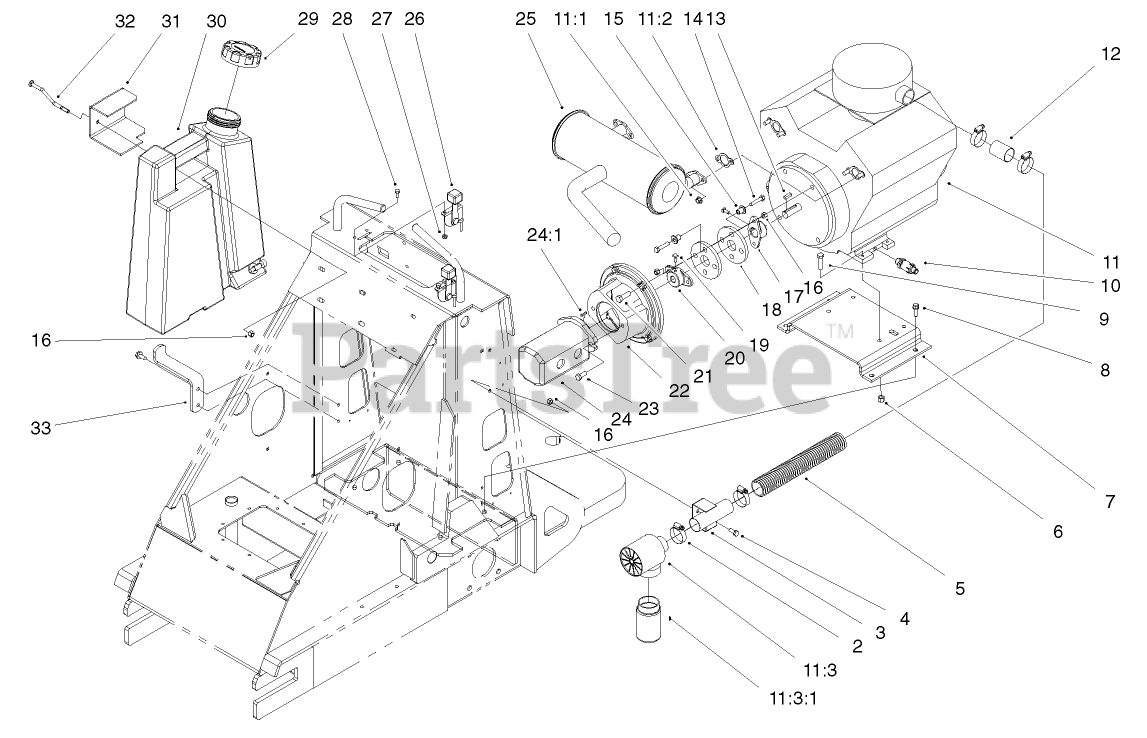

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

3

Toro 98-9945

WA - TUBE

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 98-9073

HOSE - AIR

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 98-4666

Mount-Engine
(Superseded to 98-4666-03)

$124.99

$

Usually ships in 3-6 days

0

8

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

9

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

11

Engine (CH22S 66551) Kohler 22 Hp.

$

$

Not available

11:1

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

11:2

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

11:3

Toro 98-9903

PRECLEANER - KOHLER F/W

$

$

Not available

11:3:1

Toro 98-9904

JAR - PRECLEANER

$

$

Not available

12

Toro 98-9075

TUBE - AIR

$

$

Not available

13

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 71-4411

SPACER

$2.99

$

In Stock, only 3 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 27-1960

HUB-ENGINE
(Superseded to 110-5236)

$37.99

$

In Stock, only 2 left!

0

18

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

19

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

0

20

Toro 98-4701

HUB-PUMP

$73.99

$

Usually ships in 3-6 days

0

21

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 98-2751

Mount-Pump
(Superseded to 98-2751-03)

$251.99

$

Usually ships in 3-6 days

0

23

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

24

Toro 98-4702

PUMP-GEAR, TANDEM

$2211.99

$

Usually ships in 3-6 days

0

24:1

Toro 98-4700

KEY-SQUARE

$15.99

$

Usually ships in 3-6 days

0

24:2

Toro 99-1353

SEAL KIT

Note: Not illustrated

$123.99

$

Usually ships in 3-6 days

0

25

Toro 100-1711

MUFFLER-KOHLER
(Superseded to 105-8381)

$493.99

$

Usually ships in 3-6 days

0

25:1

Toro 98-9099

SPARK ARRESTOR

Note: Not illustrated

$83.99

$

Usually ships in 3-6 days

0

26

Toro 85-9310

CONTROL-CHOKE / THROTTLE

$103.99

$

Usually ships in 3-6 days

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 6

0

29

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 16

0

30

Toro 98-4654

Fuel Tank ASM
(Superseded to 105-4052)

$

$

Not available

30:1

Toro 104047

BUSHING
(Superseded to 46-6560)

Note: Not illustrated

$5.99

$

In Stock, Qty 20+

0

30:2

Toro 104048

VALVE-FUEL

Note: Not illustrated

$36.99

$

In Stock, Qty 9

0

31

Toro 98-4655

Plate
(Superseded to 98-4655-03)

$69.99

$

Usually ships in 3-6 days

0

32

Toro 98-4657

BOLT-MOUNT

$41.99

$

Usually ships in 3-6 days

0

33

Toro 98-4656

Mount-Tank
(Superseded to 98-4656-03)

$36.99

$

Usually ships in 3-6 days

0

Toro 2412-98

CLAMP-HOSE

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

Toro 98-4667

HOSE

Note: Not illustrated

$29.99

$

Usually ships in 3-6 days

0

Toro 98-4668

HOSE-FUEL

Note: Not illustrated

$

$

Not available
