22304 (222) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) ELECTRICAL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

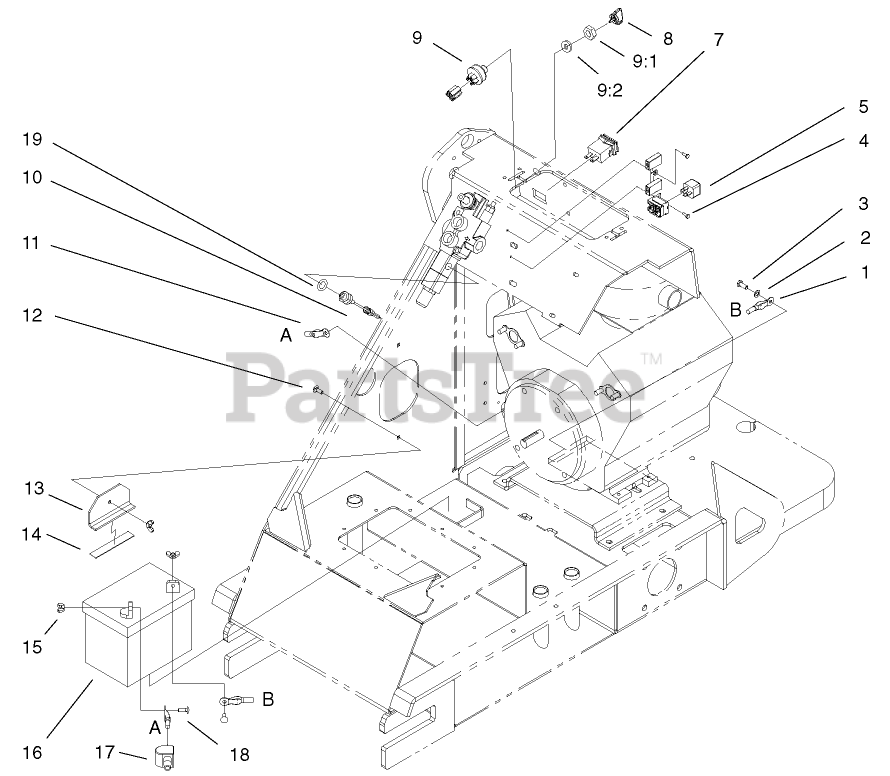

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 111074

CABLE-BLACK

$25.99

$

Usually ships in 3-6 days

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

3

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

4

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 98-7249

RELAY

$22.99

$

In Stock, only 2 left!

0

Toro 98-4650

HARNESS-ELECTRICAL

Note: Not illustrated

$207.99

$

Usually ships in 3-6 days

0

7

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$67.99

$

In Stock, only 1 left!

0

8

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

9

Toro 116338

KEY SWITCH ASM

$76.99

$

In Stock, only 2 left!

0

9:1

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

9:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

10

Toro 72-4310

SWITCH-BALL

$96.99

$

Usually ships in 3-6 days

0

11

Toro 92-6989

WIRE-21 INCH

$25.99

$

Usually ships in 3-6 days

0

12

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 98-4658

Clamp-Battery
(Superseded to 105-8401-03)

$22.99

$

Usually ships in 3-6 days

0

14

Toro 94-9566

PAD-FOOTREST

$6.49

$

Usually ships in 3-6 days

0

15

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

16

Toro 94-1867

BATTERY
(Superseded to 104-2492)

$

$

Not available

17

Toro 77-0981

BOOT-TERMINAL, RED

$16.99

$

Usually ships in 3-6 days

0

18

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

19

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

Toro 32144-18

SCREW-HWH

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0
