22304 (222) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099000001) (1999) HYDRAULIC ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

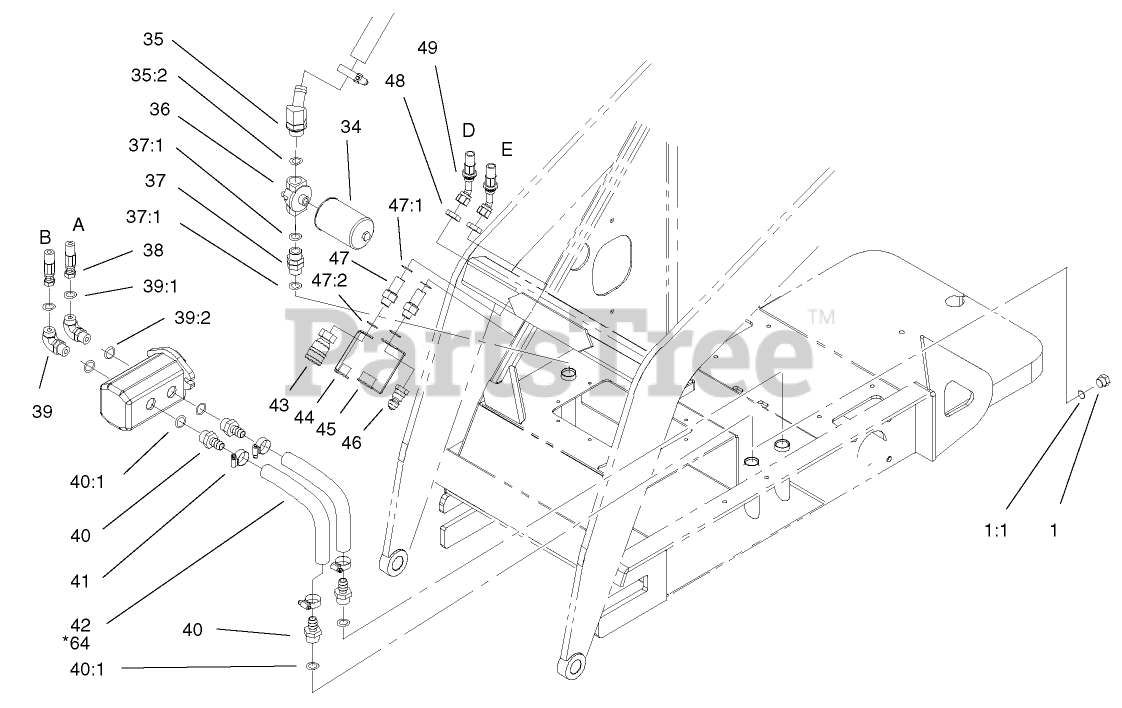

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

14:1

Toro 98-9097

KIT-SEAL, VALVE

Note: Not illustrated

$

$

Not available

14:2

Toro 98-9098

HANDLE HARDWARE KIT

Note: Not illustrated

$63.99

$

Usually ships in 3-6 days

0

18:1

Toro 98-4721

SEAL KIT
(Superseded to 99-4390)

Note: Not illustrated

$146.99

$

Usually ships in 3-6 days

0

20:1

Toro 98-4720

SEAL KIT

Note: Not illustrated

$

$

Not available

34

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 2 left!

0

35

Toro 99-3016

FITTING-45 DEG

$

$

Not available

35:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

36

Toro 92-5821

HEAD-FILTER

$199.99

$

Usually ships in 3-6 days

0

37

Toro 98-9906

FITTING-THREAD, STRAIGHT

$74.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

38

Toro 98-4747

HOSE-HYD

$269.99

$

Usually ships in 3-6 days

0

39

Toro 340-105

FITTING-ELBOW 90

$42.99

$

In Stock, only 1 left!

0

39:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

39:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

40

Toro 354-73

FITTING-STRAIGHT

$41.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

41

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

42

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

In Stock, only 2 left!

0

43

Toro 98-4699

FEMALE-DISCONNECT, QUICK

$153.99

$

In Stock, only 2 left!

0

44

Toro 98-9913

Dust Plug
(Superseded to 104-1281)

$27.99

$

Usually ships in 3-6 days

0

45

Toro 98-9912

Cap-Dust
(Superseded to 104-1282)

$

$

Not available

46

Toro 98-4698

MALE-DISCONNECT, QUICK

$66.99

$

In Stock, only 1 left!

0

47

Toro 98-9907

UNION-BULKHEAD

$92.99

$

Usually ships in 3-6 days

0

47:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

47:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

48

Toro 340-127

NUT-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

49

Toro 98-4728

HOSE-AUX, HYD

$

$

Not available

52:1

Toro 98-4721

SEAL KIT
(Superseded to 99-4390)

Note: Not illustrated

$146.99

$

Usually ships in 3-6 days

0

64

Toro 99-5349

Spring-Compression

$10.99

$

Usually ships in 3-6 days

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

Toro 3296-27

NUT-LOCK, NI

Note: Not illustrated

$1.49

$

In Stock, Qty 10

0
