22304 (222) - Toro Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) HYDRAULIC CYLINDER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

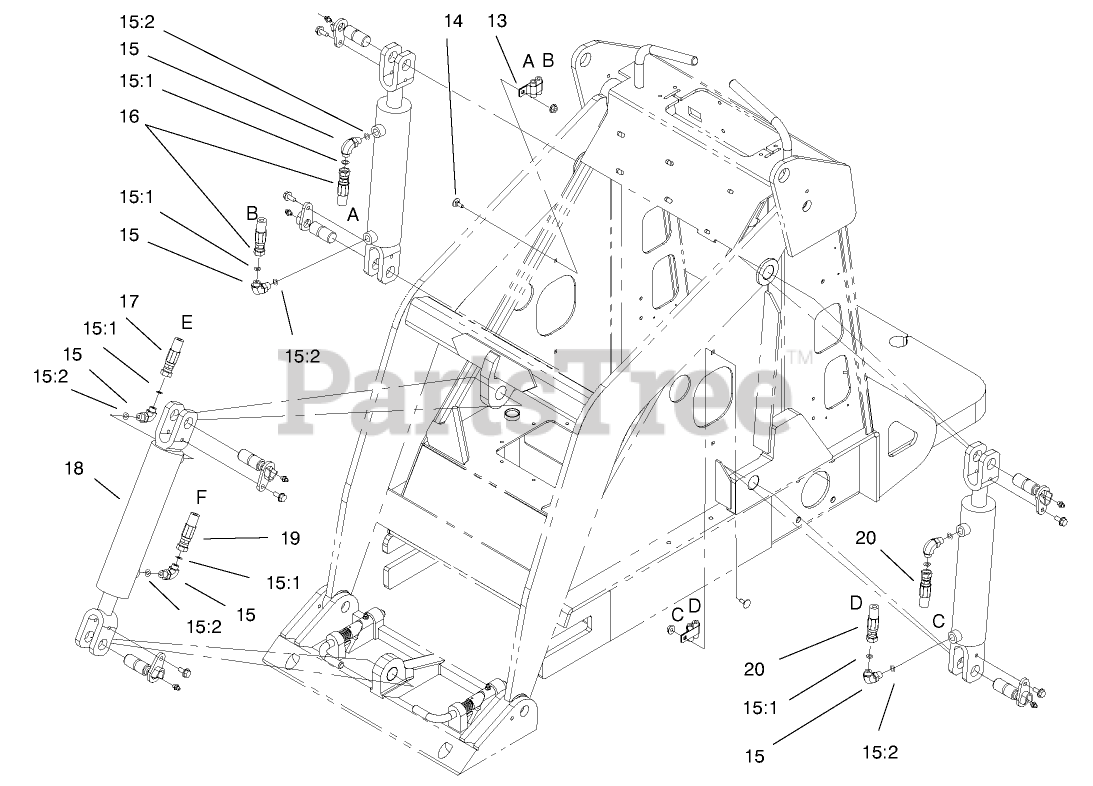

HYDRAULIC CYLINDER ASSEMBLY Parts Diagram

  • Title

13

Toro 2412-137

CLAMP-R, DOUBLE

$7.49

$

Usually ships in 3-6 days

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

15

Toro 340-82

FITTING-ELBOW 90

$24.99

$

In Stock, only 2 left!

0

15:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

15:2

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 5

0

16

Toro 98-4725

HOSE-HYD

$211.99

$

Usually ships in 3-6 days

0

17

Toro 98-4727

HOSE-HYD

$259.99

$

Usually ships in 3-6 days

0

18

Toro 98-4710

Hydraulic Cylinder
(Superseded to 100-4163)

$2087.99

$

Usually ships in 3-6 days

0

18:1

Toro 99-1352

KIT-SEAL

Note: Not illustrated

$322.99

$

Usually ships in 3-6 days

0

19

Toro 98-4726

HOSE-HYD

$276.99

$

Usually ships in 3-6 days

0

20

Toro 98-4748

HYD HOSE ASM

$204.99

$

Usually ships in 3-6 days

0

Toro 283-52

PIN-CLEVIS

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

Toro 3290-467

PIN-HAIR

Note: Not illustrated

$0.99

$

In Stock, Qty 5

0

Toro 98-4675

Lock-Cylinder
(Superseded to 98-4675-01)

Note: Not illustrated

$36.99

$

Usually ships in 3-6 days

0
