22304 (222) - Toro Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) GROUP 10-AIR INTAKE/FILTRATION Parts Diagram

Dingo Compact Utility Loader

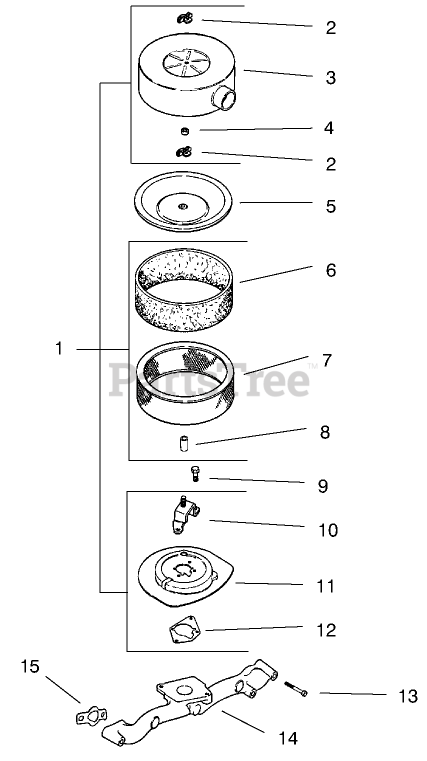

GROUP 10-AIR INTAKE/FILTRATION Parts Diagram

  • Title

1

Kohler 24 755 21

Kit, air cleaner cover (Includes 2-4, 6-8, 10-12 and decal 24 113 31)
(Superseded to 24 755 21-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$210.99

$

Usually ships in 2-5 days

0

2

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

3

2409652

Cover, air cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

4103202

Seal

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 1 left!

0

6

2408302

Bement-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

4708303

Bement-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 230046

Seal
(Superseded to 230046-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

9

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

10

2412622

Bracket-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

2409405

Base-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

13

Kohler M-0651055

Screw
(Superseded to 25 086 766-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

14

Kohler 24 164 14

Manifold
(Superseded to 24 164 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

15

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

2411331

Decal, Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411331

Decal, Air Cleaner

Note: Not illustrated

$

$

Not available

2404802

Precleaner Assembly

Note: Not illustrated

$

$

Not available

2404802

Precleaner Assembly

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
