22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) WHEEL AND MOTOR ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

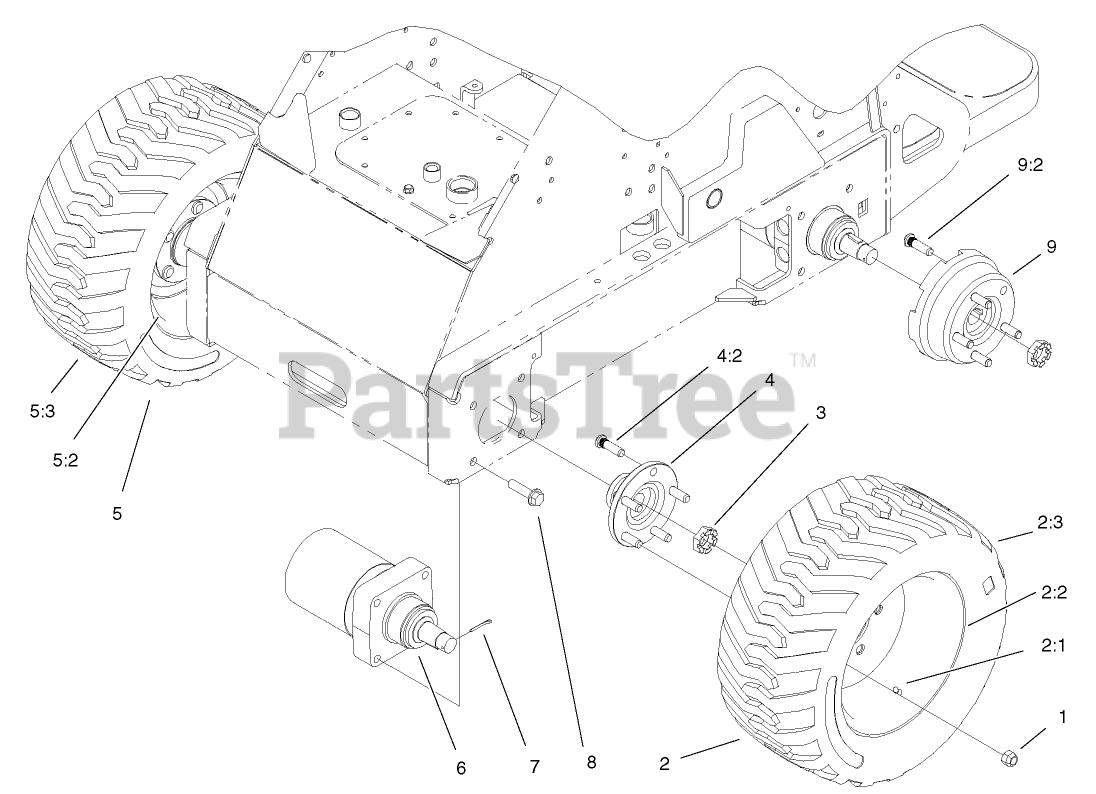

WHEEL AND MOTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

2

Toro 98-2747

LH WHEEL AND TIRE ASM

$

$

Not available

2:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 12

0

2:2

Toro 98-2748

WHEEL

$

$

Not available

2:3

Toro 98-2749

TIRE

$347.99

$

In Stock, only 4 left!

0

3

Toro 99-3139

NUT

$16.99

$

In Stock, only 3 left!

0

4

Toro 99-3064

HUB ASM

$239.99

$

In Stock, only 1 left!

0

4:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

5

Toro 99-1447

RH WHEEL AND TIRE ASM

$

$

Not available

5:2

Toro 98-2748

WHEEL

$

$

Not available

5:3

Toro 98-2749

TIRE

$347.99

$

In Stock, only 4 left!

0

5:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 12

0

6

Toro 99-3052

HYD MOTOR ASM

$2640.99

$

Usually ships in 3-6 days

0

7

Toro 99-3171

PIN-COTTER

$2.49

$

Usually ships in 3-6 days

0

8

Toro 3234-27

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

9

Toro 105-4056

WHEEL HUB ASM

$243.99

$

Usually ships in 3-6 days

0

9:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available
