22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) SPEED CONTROL PLATE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

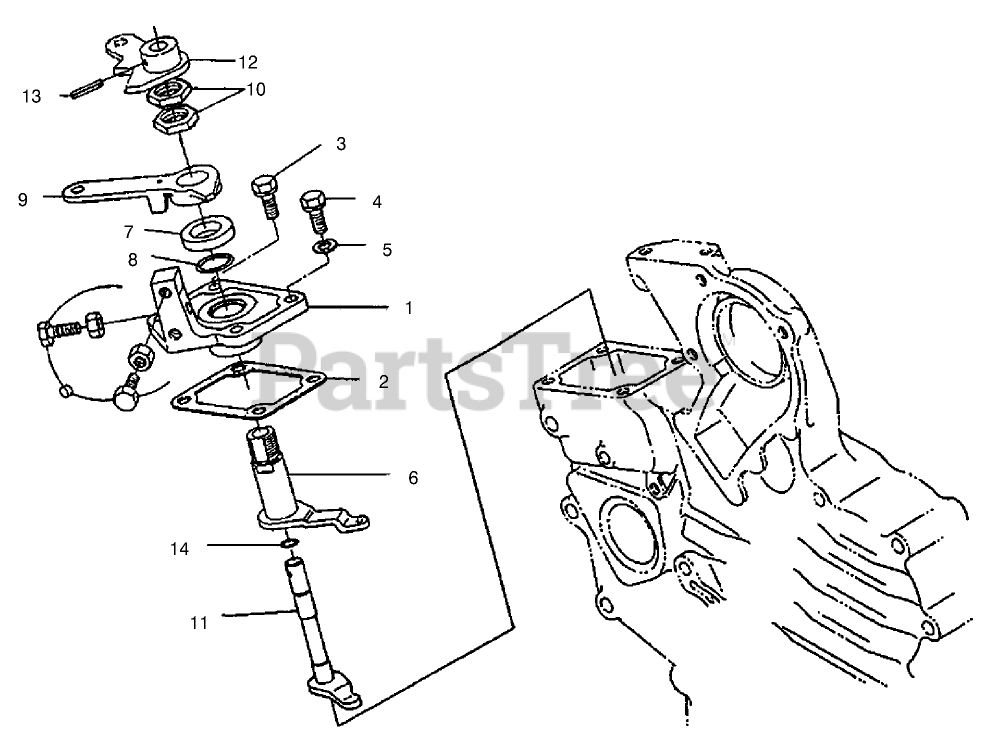

SPEED CONTROL PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1912

PLATE-SPEED, CONT.

$69.99

$

Usually ships in 3-6 days

0

2

Toro 100-1914

GASKET
(Superseded to 100-1962)

$8.99

$

In Stock, only 1 left!

0

3

Toro 98-7605

BOLT

$1.49

$

In Stock, Qty 7

0

4

Toro 100-1769

BOLT
(Superseded to 99-8348)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 98-7654

GASKET

$13.99

$

Usually ships in 3-6 days

0

6

Toro 100-2172

LEVER-GOVERNOR

$

$

Not available

7

Toro 100-1915

COLLAR

$

$

Not available

8

Toro 100-2208

O-RING

$3.99

$

Usually ships in 3-6 days

0

9

Toro 100-1986

LEVER-CONT., SPEED

$

$

Not available

10

Toro 100-1925

NUT

$9.49

$

Usually ships in 3-6 days

0

11

Toro 100-2050

SHAFT-LEVER

$

$

Not available

12

Toro 100-2173

LEVER-STOP, ENGINE

$156.99

$

Usually ships in 3-6 days

0

13

Toro 100-1751

PIN-SPRING

$2.49

$

Usually ships in 3-6 days

0

14

Toro 100-2207

O-RING

$3.99

$

Usually ships in 3-6 days

0
