22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) BATTERY MOUNT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

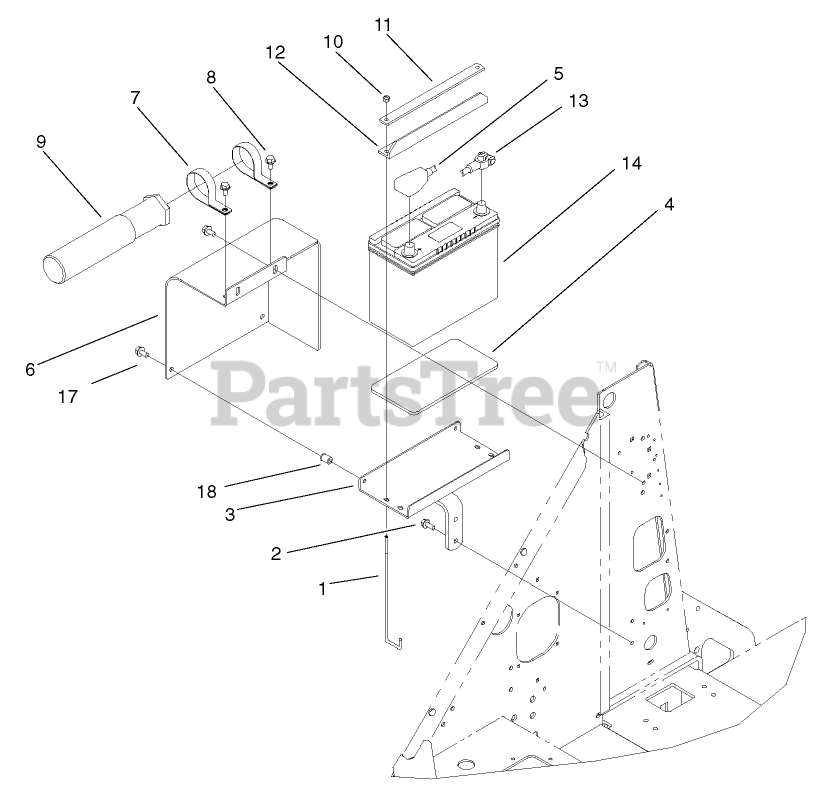

BATTERY MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 99-5035

RETAINER-BATTERY

$88.99

$

Usually ships in 3-6 days

0

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 98-2665-03

Mount-Battery

$100.99

$

Usually ships in 3-6 days

0

4

Toro 99-5030

PAD-BATTERY

$53.99

$

Usually ships in 3-6 days

0

5

Toro 100-1708

CABLE-BATTERY, POSITIVE

$80.99

$

Usually ships in 3-6 days

0

6

Toro 98-2670-03

Cover-Battery

$197.99

$

Usually ships in 3-6 days

0

7

Toro 2412-133

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

8

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

9

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 99-5008-01

RETAINER-BATTERY

$28.99

$

Usually ships in 3-6 days

0

12

Toro 99-5039

RETAINER-BATTERY

$106.99

$

Usually ships in 3-6 days

0

13

Toro 100-1709

CABLE-BATTERY, NEGATIVE

$75.99

$

Usually ships in 3-6 days

0

14

Toro 99-1441

BATTERY

$

$

Not available

17

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

18

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0
