22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

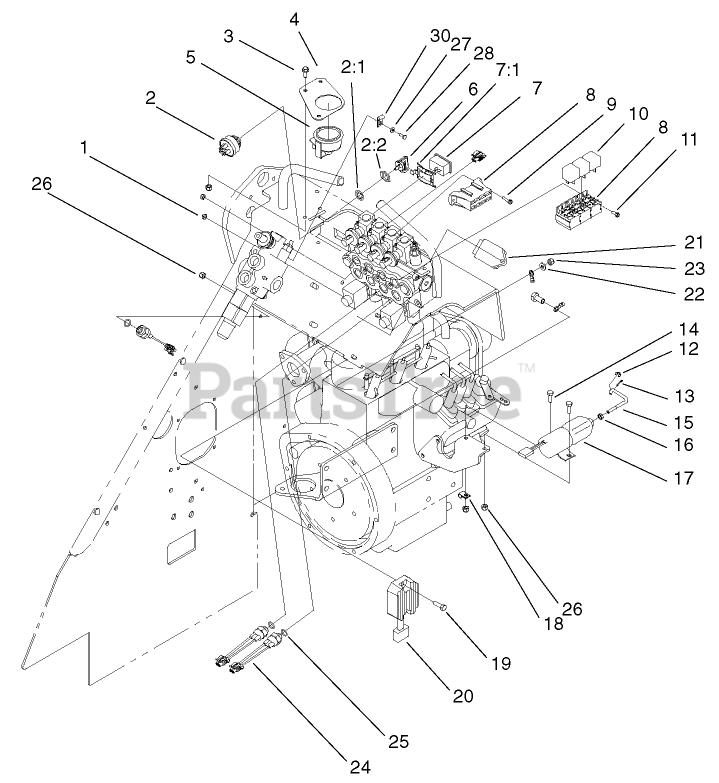

ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

2

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$28.99

$

In Stock, Qty 6

0

2:1

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

2:2

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

3

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 6

0

4

Toro 100-1707-01

MOUNT-LAMP, WARNING

$

$

Not available

5

Toro 100-1732

CLUSTER-LAMP

$451.99

$

Usually ships in 3-6 days

0

6

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

7

Toro 104-7429

HOUR METER ASM

$308.99

$

Usually ships in 3-6 days

0

7:1

Toro 104-4234

CLIP-MOUNTING

$7.49

$

Usually ships in 3-6 days

0

8

Toro 104-7410

WIRE HARNESS, DINGO KUBOTA

$

$

Not available

9

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

10

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 20+

0

11

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

12

Toro 52-5910

RING-RETAINING

$5.99

$

Usually ships in 3-6 days

0

13

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 99-1423

ROD-LINKAGE, THREADED
(Superseded to 105-6243)

$63.99

$

Usually ships in 3-6 days

0

16

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

17

Toro 99-5006

SOLENOID
(Superseded to 131-0569)

$1307.99

$

Usually ships in 3-6 days

0

18

Toro 2412-31

CLAMP-BODEN

$2.49

$

Usually ships in 3-6 days

0

19

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 12

0

20

Toro 100-2057

REGULATOR ASM

$341.99

$

Usually ships in 3-6 days

0

21

Toro 98-7611

CONTROLLER-GLOW

$463.99

$

Usually ships in 3-6 days

0

22

Toro 100-2215

WASHER-SPRING

$2.99

$

Usually ships in 3-6 days

0

23

Toro 100-2171

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

24

Toro 72-4310

SWITCH-BALL

$102.99

$

Usually ships in 3-6 days

0

25

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

30

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0
