22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) PARKING BRAKE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

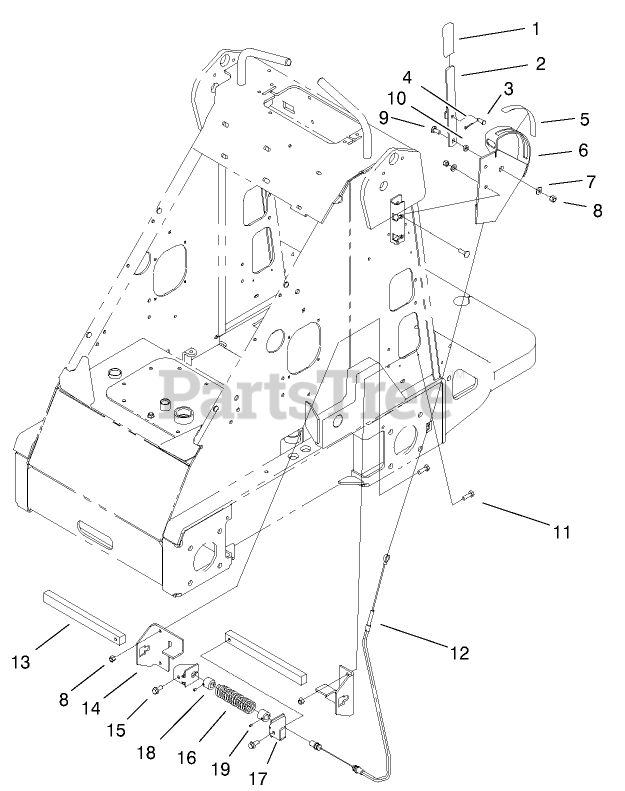

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-9130

GRIP-HANDLE

$7.99

$

Usually ships in 3-6 days

0

2

Toro 100-1684-03

LEVER-BRAKE

$117.99

$

Usually ships in 3-6 days

0

3

Toro 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 10

0

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 100-1692

DECAL-BRAKE

$158.99

$

Usually ships in 3-6 days

0

6

Toro 100-1688-03

PLATE
(Superseded to 105-8414-03)

$287.99

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-1683

HUB-LEVER

$54.99

$

Usually ships in 3-6 days

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 100-1679

CABLE

$184.99

$

Usually ships in 3-6 days

0

13

Toro 100-1674-03

BAR-BRAKE

$149.99

$

Usually ships in 3-6 days

0

14

Toro 100-1676-03

BRACKET-BRAKE

$66.99

$

Usually ships in 3-6 days

0

15

Toro 100-1668

SCREW-FLANGE

$6.49

$

Usually ships in 3-6 days

0

16

Toro 100-1678-03

SPRING

$39.99

$

Usually ships in 3-6 days

0

17

Toro 100-1677-03

BRACKET-CABLE

$

$

Not available

18

Toro 100-6274

Tube-Guide

$21.99

$

Usually ships in 3-6 days

0

19

Toro 3245-20

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0
